AFL2-12A-D525 Series Panel PC
Page 149

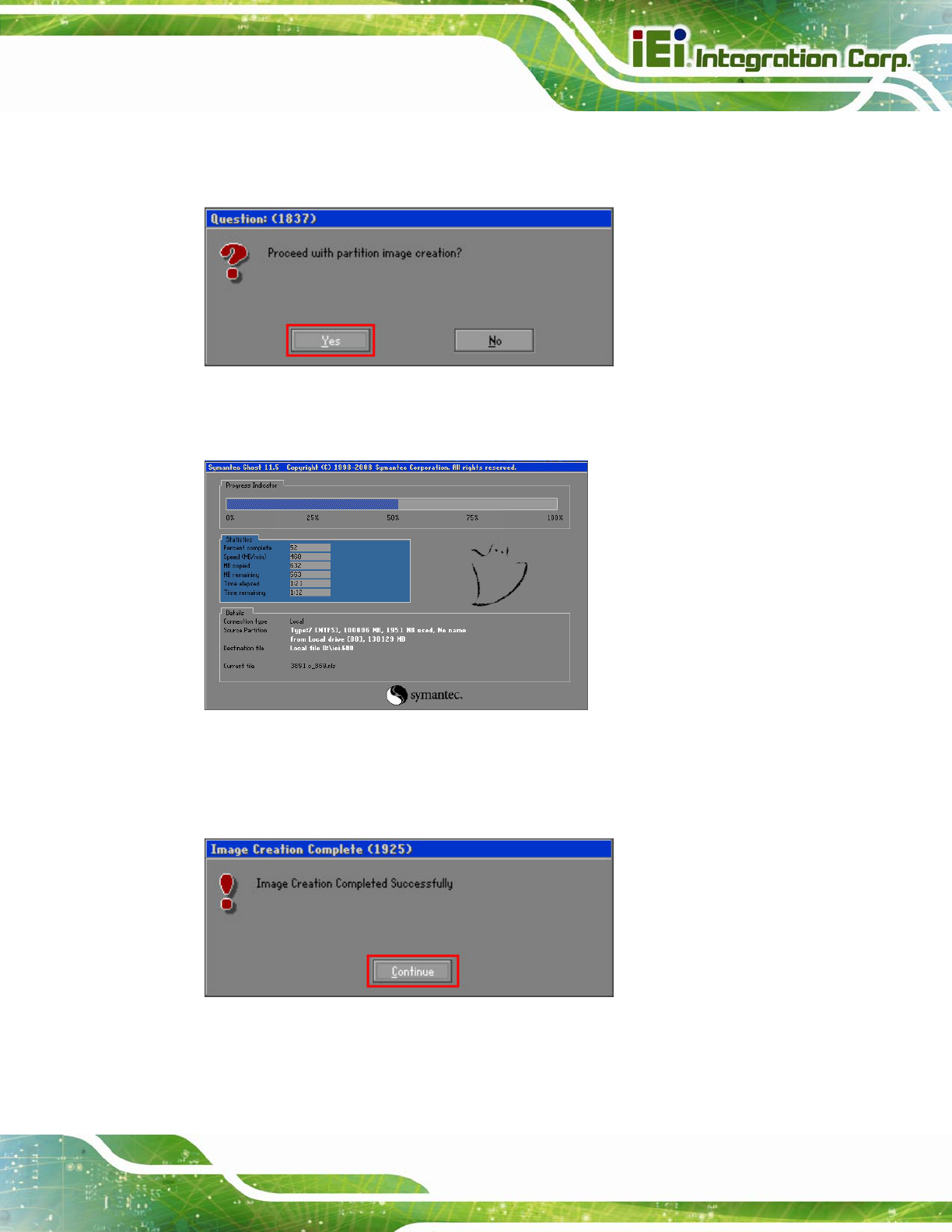

Step 9: The Proceed with partition image creation window appears, click Yes to
continue.
Figure C-18: Image Creation Confirmation
Step 10: The Symantec Ghost starts to create the factory default image (
Figure C-19).
Figure C-19: Image Creation Complete
Step 11: When the image creation completes, a screen prompts as shown in
Figure C-20.
Click Continue and close the Ghost window to exit the program.
Figure C-20: Image Creation Complete
