AFL2-12A-D525 Series Panel PC
Page 147

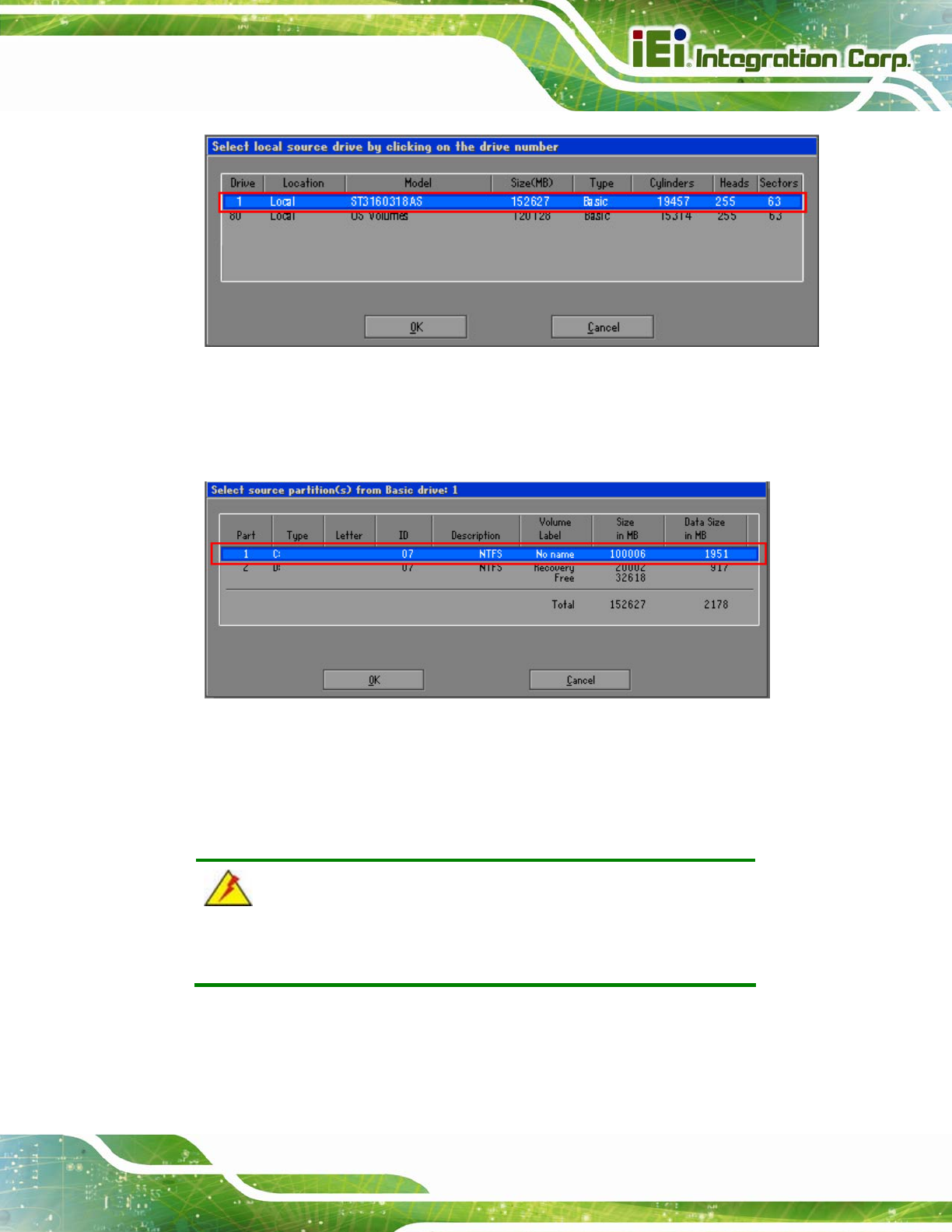

Figure C-14: Select a Local Source Drive
Step 6: Select a source partition (Part 1) from basic drive as shown in
Figure C-15.
Then click OK.
Figure C-15: Select a Source Partition from Basic Drive
Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called iei
(
Figure C-16). Click Save. The factory default image will then be saved in the
selected recovery drive and named IEI.GHO.
WARNING:
The file name of the factory default image must be iei.GHO.
