AFL2-12A-D525 Series Panel PC
Page 120

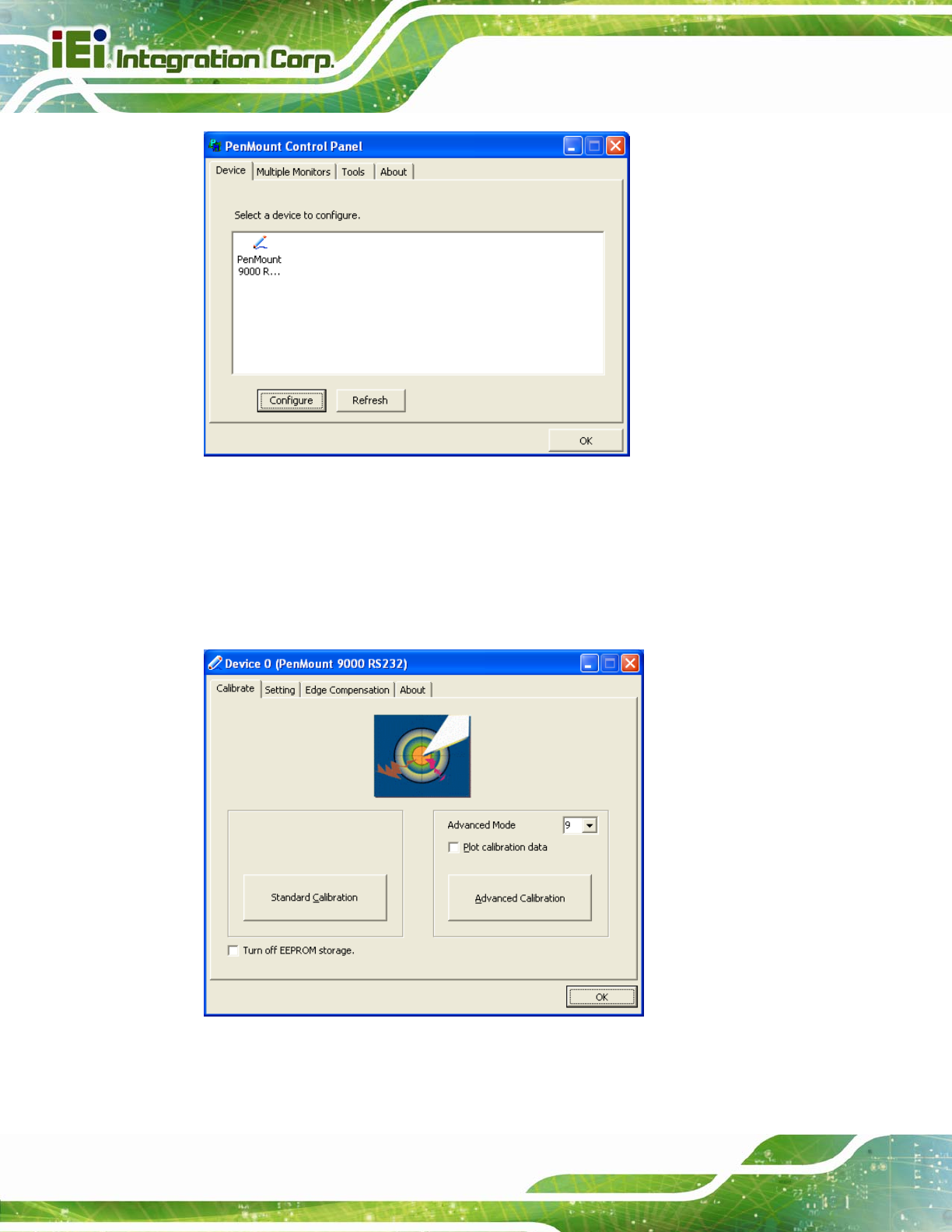

Figure 7-24: Configuration Screen
Step 6: Double click the PenMount 9000 icon as shown in
Figure 7-24.
Step 7: The calibration initiation screen in
Figure 7-25 appears.
Step 8: Select the Standard Calibration button as shown in
Figure 7-25.
Figure 7-25: Calibration Initiation Screen
Step 9: The calibration screen in is shown. See
Figure 7-26.
