AFL-xxA-N270 Series Panel PC
Page 106

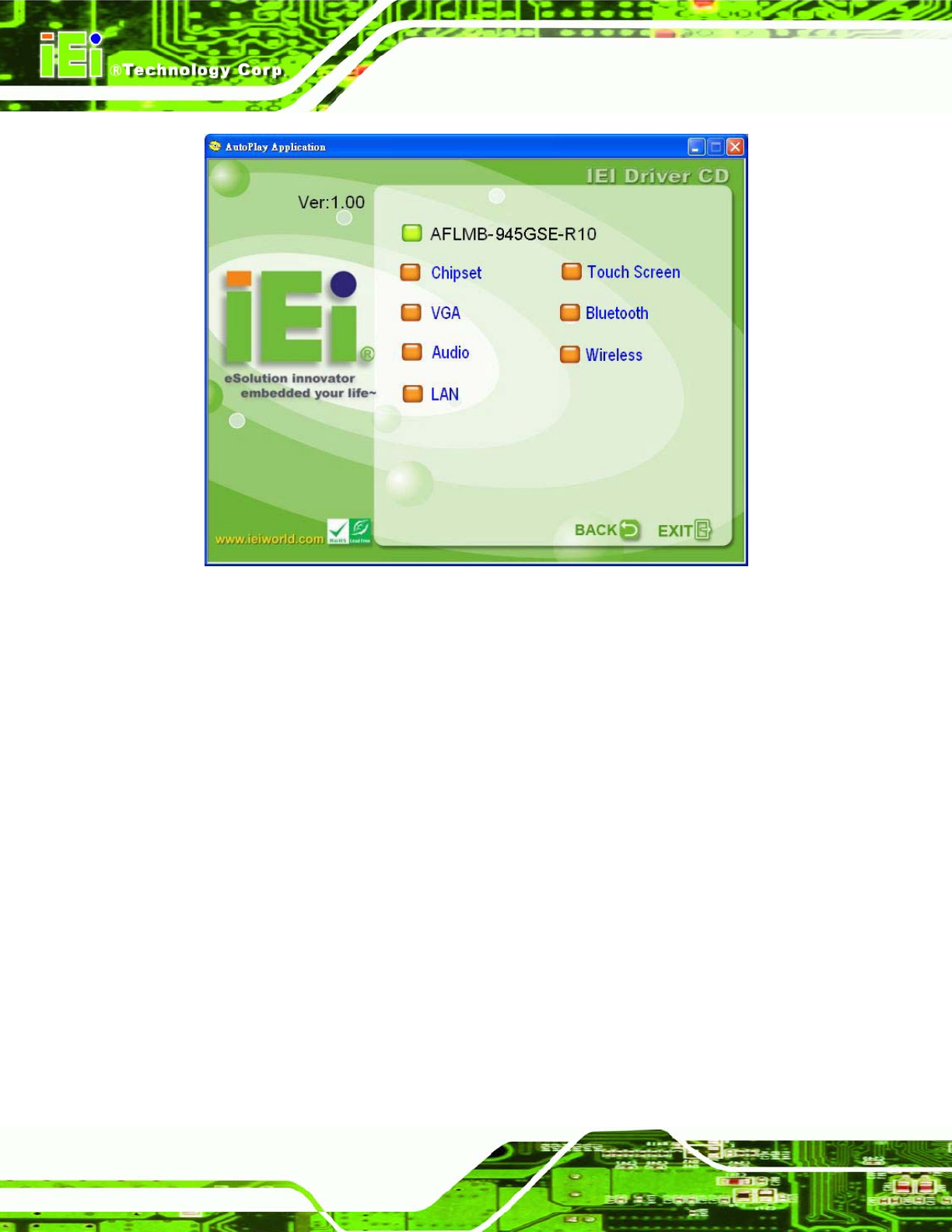

Figure 7-1: Drivers
7.3 Chipset Driver Installation
To install the chipset driver, please do the following.
Step 1: Access the driver list shown in
Figure 7-1. (See Section 7.2)
Step 2: Click “Chipset” and double click “Setup.exe”.
Step 3: The setup files are extracted as shown in
Figure 7-2.
