AFL-xxA-N26 Series Panel PC
Page 55

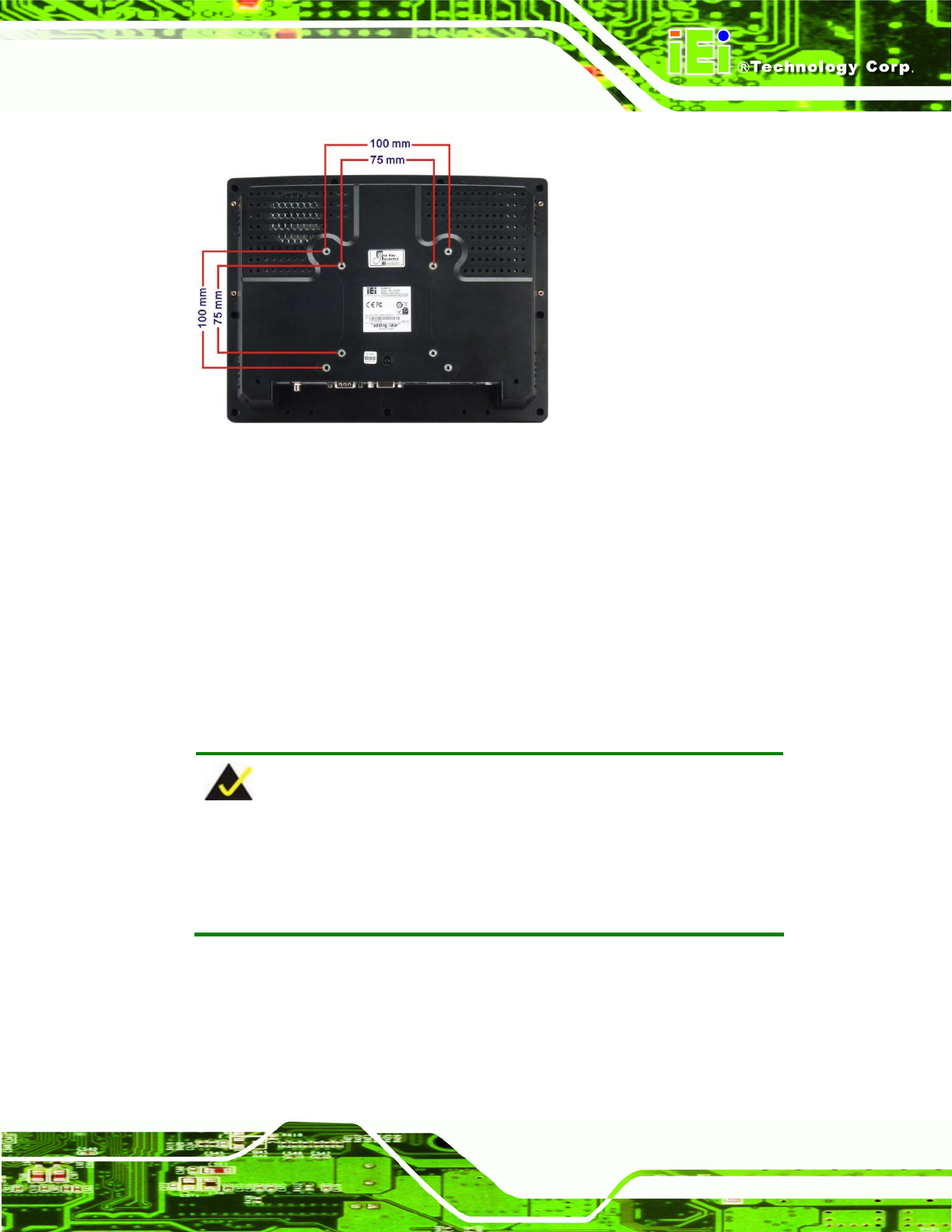

Figure 3-25: AFL-10A-N26/AFL-12A-N26 Arm Mounting Retention Screw Holes
Step 4: Secure the flat panel PC to the interface pad by inserting four retention screws
through the bottom of the mounting arm interface pad and into the flat panel PC.
Step 0:
3.9.4 Cabinet and Rack Installation
The AFL-xxA-N26 series flat panel PC can be installed into a cabinet or rack. The
installation procedures are similar to the panel mounting installation. To do this, please
follow the steps below:
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the AFL-xxA-N26 series flat panel PC and the
rack/cabinet into which the AFL-xxA-N26 series is installed.
Step 1: Slide the rear chassis of the AFL-xxA-N26 series flat panel PC through the
rack/cabinet bracket until the aluminum frame is flush against the front of the
bracket (
Figure 3-26).
