AFL-xxA-N26 Series Panel PC
Page 54

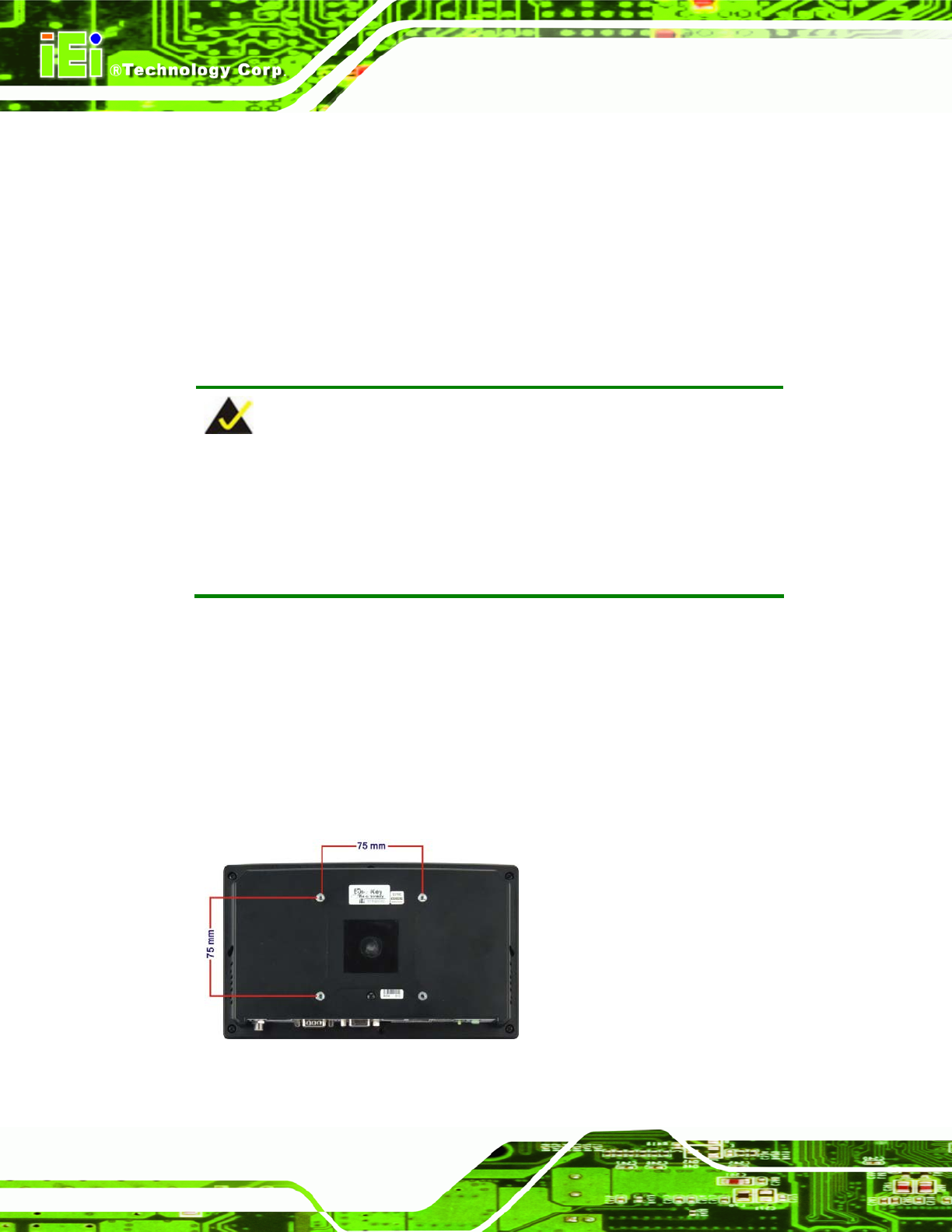

3.9.3 Arm Mounting
The AFL-xxA-N26 series is VESA (Video Electronics Standards Association) compliant
and can be mounted on an arm with a 75mm interface pad. To mount the AFL-xxA-N26
series on an arm, please follow the steps below.
Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation
that came with the mounting arm.
NOTE:
When purchasing the arm please ensure that it is VESA compliant and that
the arm has a 75 mm interface pad. If the mounting arm is not VESA
compliant it cannot be used to support the AFL-xxA-N26 series flat panel
PC. The AFL-10A-N26 and AFL-12A-N26 also support VESA MIS-D 100.
Step 2: Once the mounting arm has been firmly attached to the surface, lift the flat panel
PC onto the interface pad of the mounting arm.
Step 3: Align the retention screw holes on the mounting arm interface with those in the
flat panel PC. The AFL-W07A-N26 and AFL-08A-N26 arm mount retention
screw holes are shown in
Figure 3-24 and the AFL-10A-N26 and AFL-12A-N26
are shown in
Figure 3-25.
Figure 3-24: AFL-W07A-N26/AFL-08A-N26 Arm Mounting Retention Screw Holes
