AFL-xxA-N26 Series Panel PC
Page 51

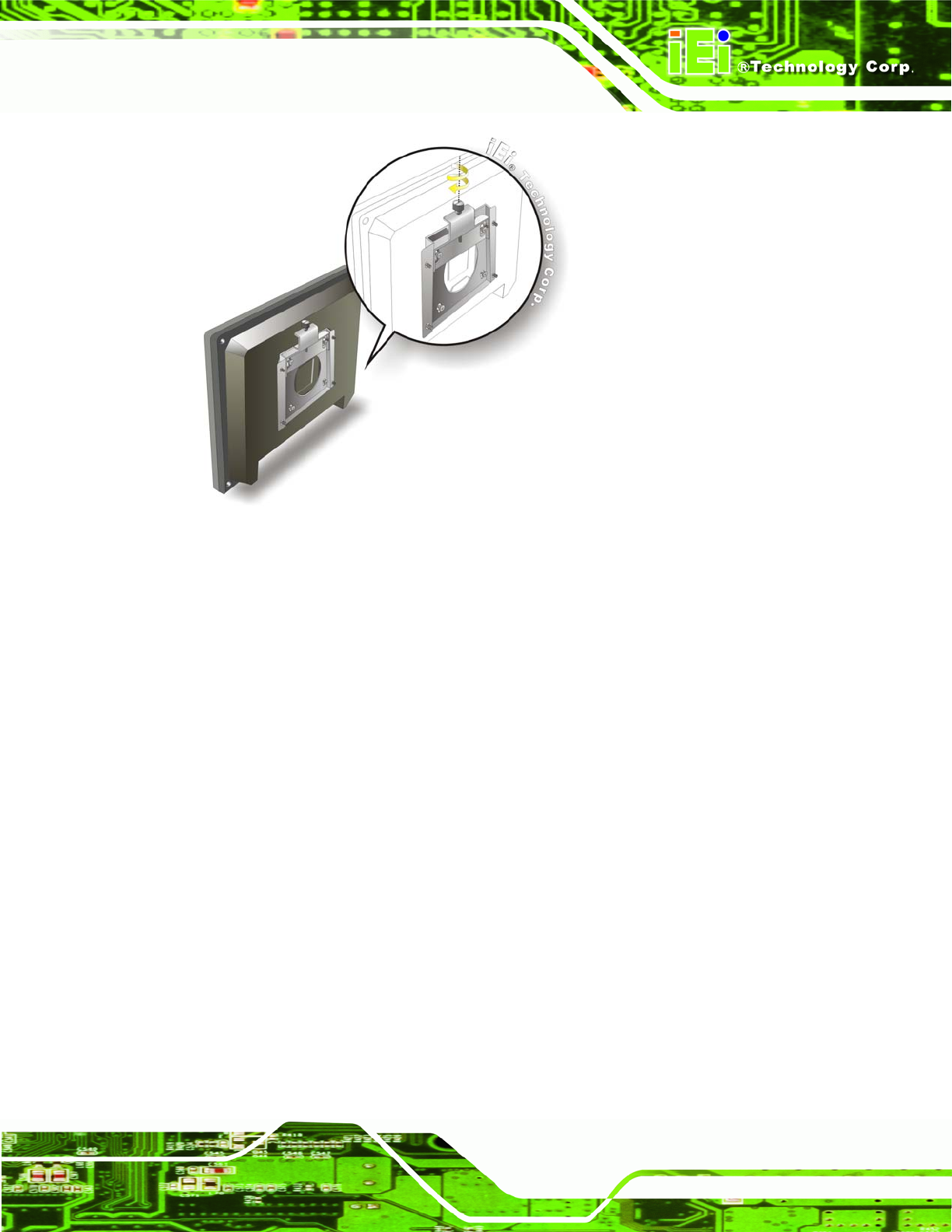

Figure 3-18: Secure the Panel PC
3.9.2 Panel Mounting
To mount the AFOLUX AFL-xxA-N26 series flat panel PC into a panel, please follow the
steps below.
Step 1: Select the position on the panel to mount the flat panel PC.
Step 2: Cut out a section from the panel that corresponds to the rear panel dimensions
of the flat panel PC. Take care that the panel section that is cut out is smaller
than the overall size of the frame that surrounds the flat panel PC but just large
enough for the rear panel of the flat panel PC to fit through (see
Figure 3-19,
Figure 3-20, Figure 3-21 and Figure 3-22).
