AFL-xxA-N26 Series Panel PC
Page 40

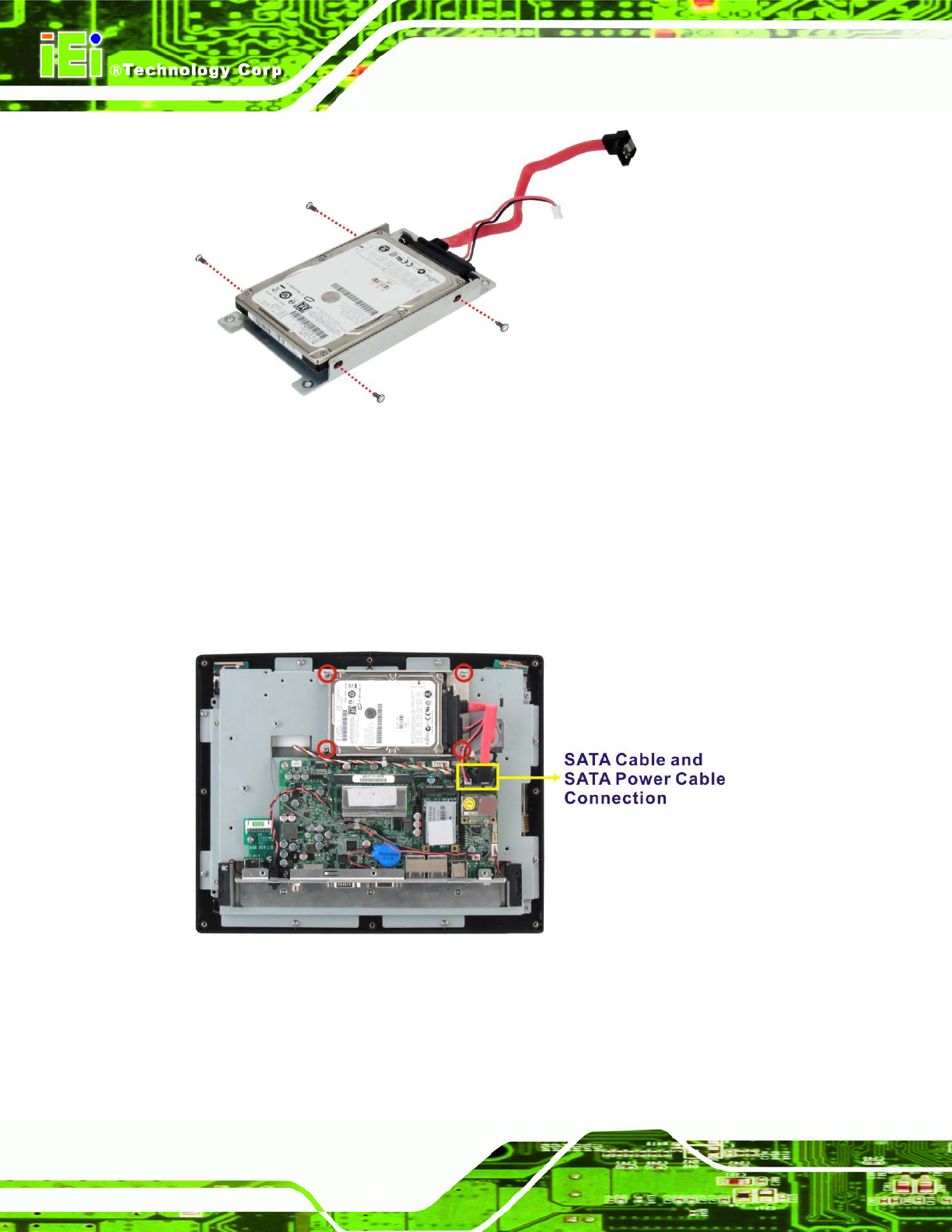

Figure 3-10: AF-12A-N26 HDD Retention Screws
Step 4: Install the HDD into the AF-12A-N26 by aligning the retention screw holes in the
HDD brackets with the retention screw holes on the chassis. Insert the four
retention screws.
Step 5: Connect the SATA cable and the SATA power cable to the connectors on the
motherboard.
Figure 3-11: AF-12A-N26 HDD Installation
Step 6: Replace the aluminum back cover to the chassis.
Step 7: Replace the plastic back cover. Step 0:
