AFL-xxA-N26 Series Panel PC
Page 36

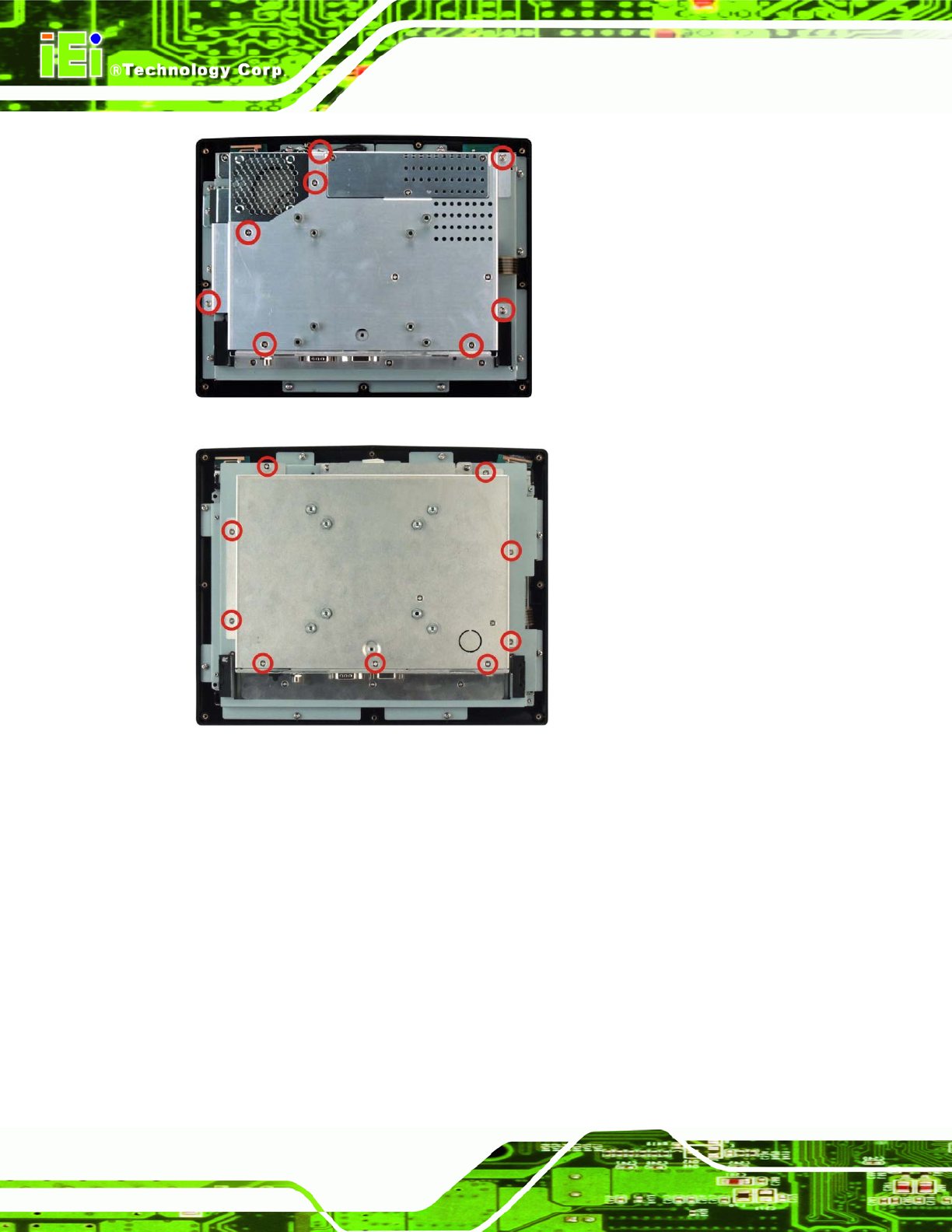

Figure 3-4: AFL-10A-N26 Aluminum Back Cover Retention Screws
Figure 3-5: AFL-12A-N26 Aluminum Back Cover Retention Screws
Step 3: Lift the aluminum cover off the AFL-xxA-N26 series. Step 0:
3.5 mSATA SSD Installation
The AFL-xxA-N26 series has one PCIe Mini slot inside the rear panel for mSATA SSD
installation. To install the mSATA SSD, follow the instructions below.
Step 1: Open the system by following the instruction described in Section
3.4.
Step 2: Locate the PCIe Mini slot (
Figure 3-6).
