AFL-xxA-N26 Series Panel PC
Page 35

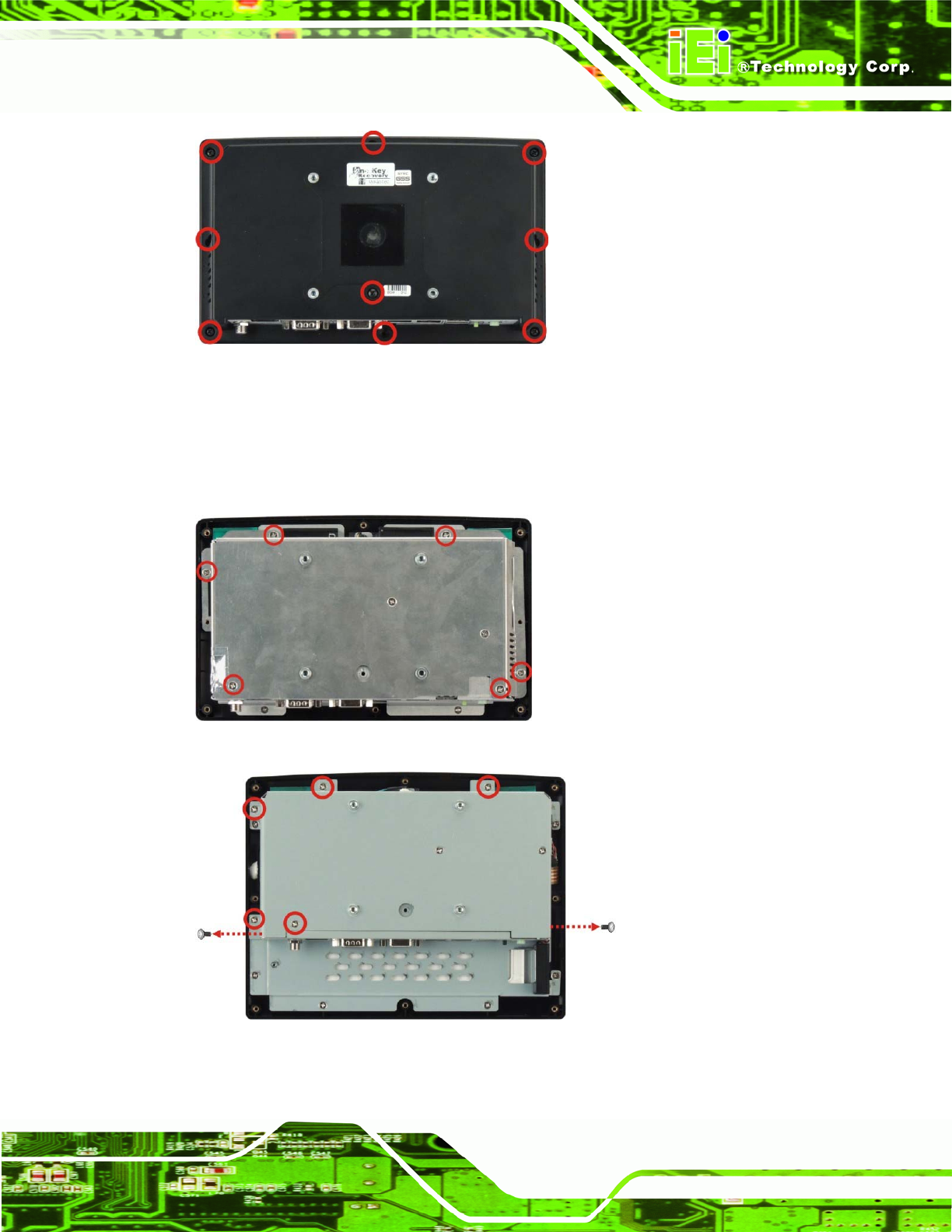

Figure 3-1: Back Cover Retention Screws
Step 2: Remove the retention screws securing the internal aluminum cover. The screw
numbers are varied in different models. The following figures show the
aluminum cover retention screws of each model.
Figure 3-2: AFL-W07A-N26 Aluminum Back Cover Retention Screws
Figure 3-3: AFL-08A-N26 Aluminum Back Cover Retention Screws
