AFL-xxA-N26 Series Panel PC
Page 120

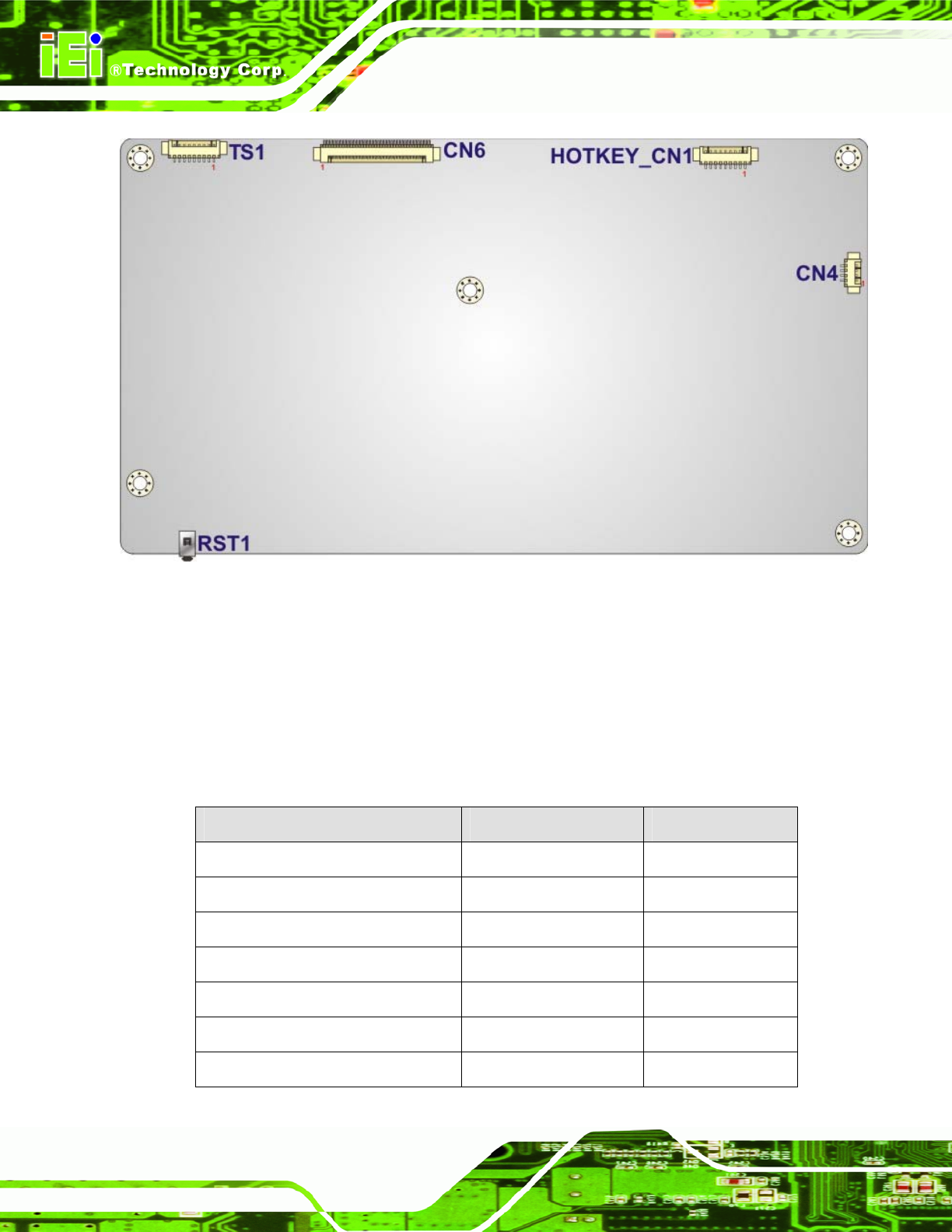

Figure 7-2: Main Board Layout Diagram (Solder Side)
7.2 Internal Peripheral Connectors
Internal peripheral connectors are found on the motherboard and are only accessible
when the motherboard is outside of the chassis. The table below shows a list of the
peripheral interface connectors on the AFL-xxA-N26 motherboard. Pinouts of these
connectors can be found in the following sections.
Connector Type Label
Audio speaker connector 4-pin wafer CN3
Audio MIC-in connector 4-pin wafer MIC1
Audio DMIC-in connector 4-pin wafer DMIC1
Battery connector 2-pin wafer CN11
COM2 connector 6-pin header COM2
CPU fan connector 3-pin wafer CPU_FAN1
DIO connector 10-pin header DIO1
