Step 2: A new window opens. Select the RT5392 folder. Double click the .exe file to
install the wireless LAN driver.
Step 3: The license agreement in
Figure 6-29 appears.

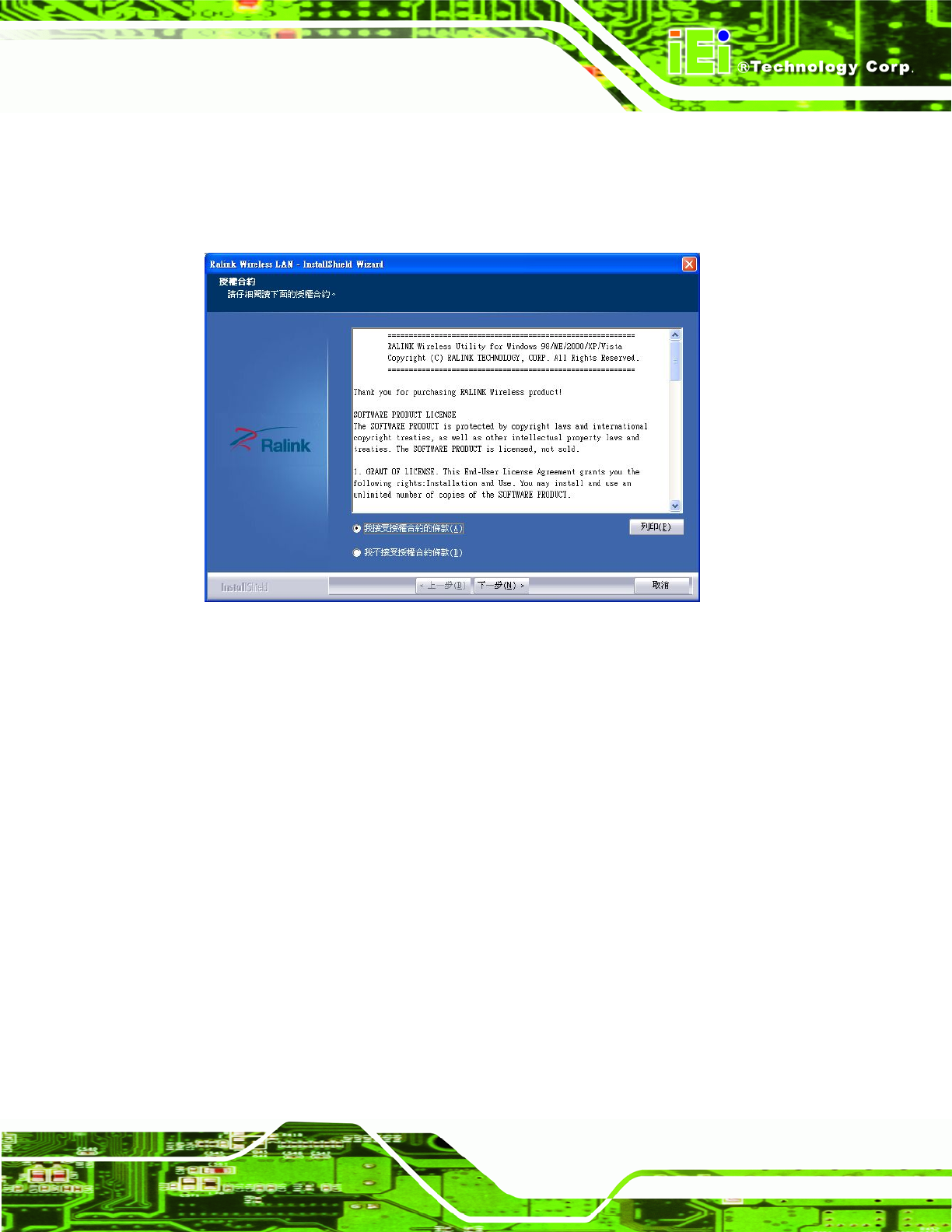

Figure 6-29: Wireless Driver License Agreement
Step 4: Accept the conditions of the license agreement and click N
EXT to continue.
Step 5: The Configuration Tool Options screen in
Figure 6-30 appears next.
