AFL-xxA-N26 Series Panel PC
Page 114

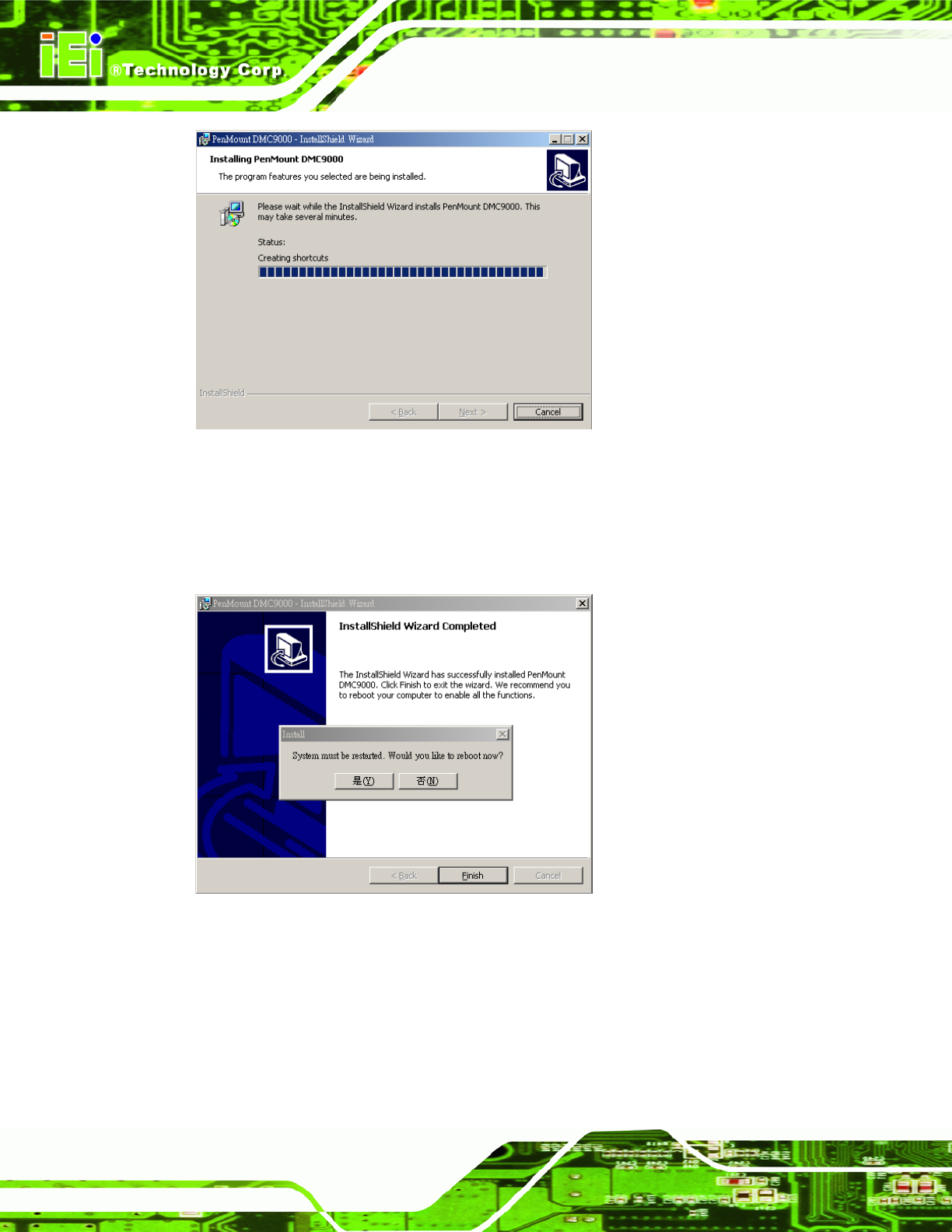

Figure 6-27: Installing PenMount DMC9000
Step 6: The user is then prompted to select to restart the computer now or later (
Figure
6-28). For the settings to take effect, the computer must be restarted. Click Yes
to restart the computer.
Figure 6-28: Reboot the Computer
6.8 Wireless Driver
To install the wireless driver, please follow the steps below.
Step 1: Select Wireless from the list in
Figure 6-1.
