AFL-xxA-N26 Series Panel PC
Page 112
Step 9: The confirmation screen offers the option of restarting the computer now or later.
For the settings to take effect, the computer must be restarted. Click F
INISH to
restart the computer. Step 0:
6.7 Touch Screen Driver
To install the touch panel software driver, please follow the steps below.
Step 1: Access the driver list shown in
Figure 6-1 (See Section 6.2). Click “Touch
Screen”.
Step 2: A welcome screen appears (
Figure 6-24). To continue the installation process
click N
EXT.

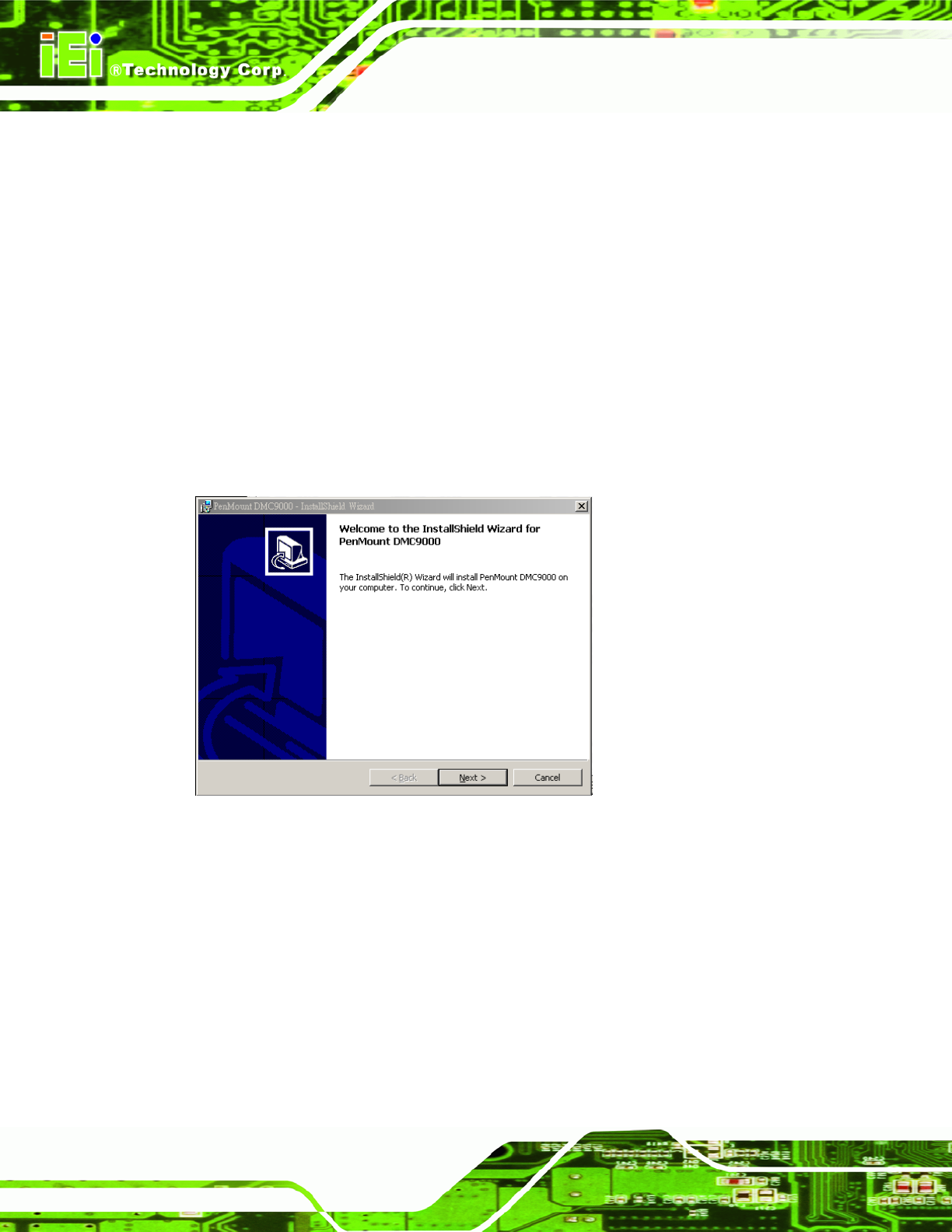

Figure 6-24: Welcome Screen
Step 3: The license agreement shown in
Figure 6-25 appears. Agree to the license by
selecting “I accept the terms in the license agreement”.
