AFL-xxA-N26 Series Panel PC
Page 111

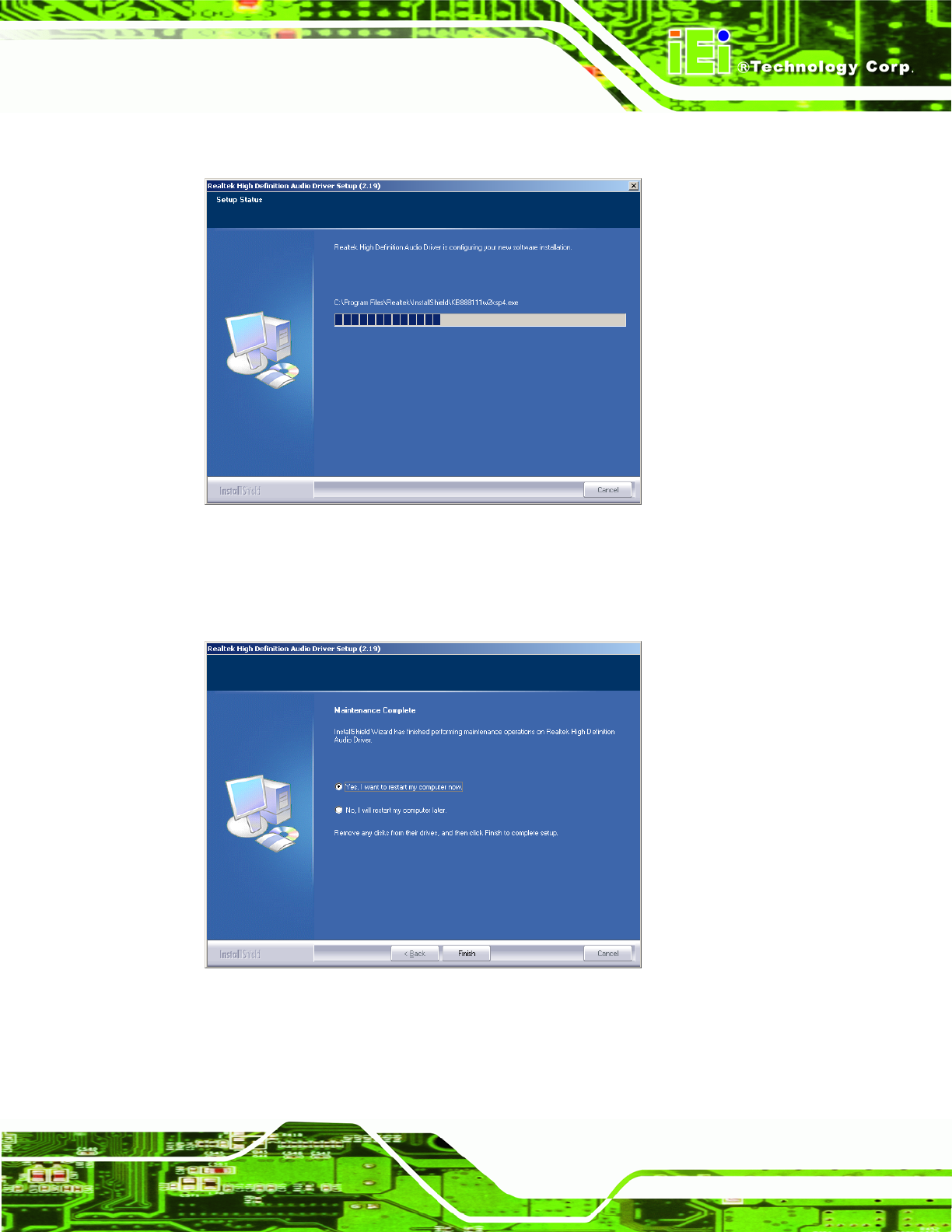

Step 7: InstallShield starts to install the new software as shown in Figure 6-22.
Figure 6-22: Audio Driver Software Configuration
Step 8: After the driver installation process is complete, a confirmation screen appears
(
Figure 6-23).
Figure 6-23: Restart the Computer
