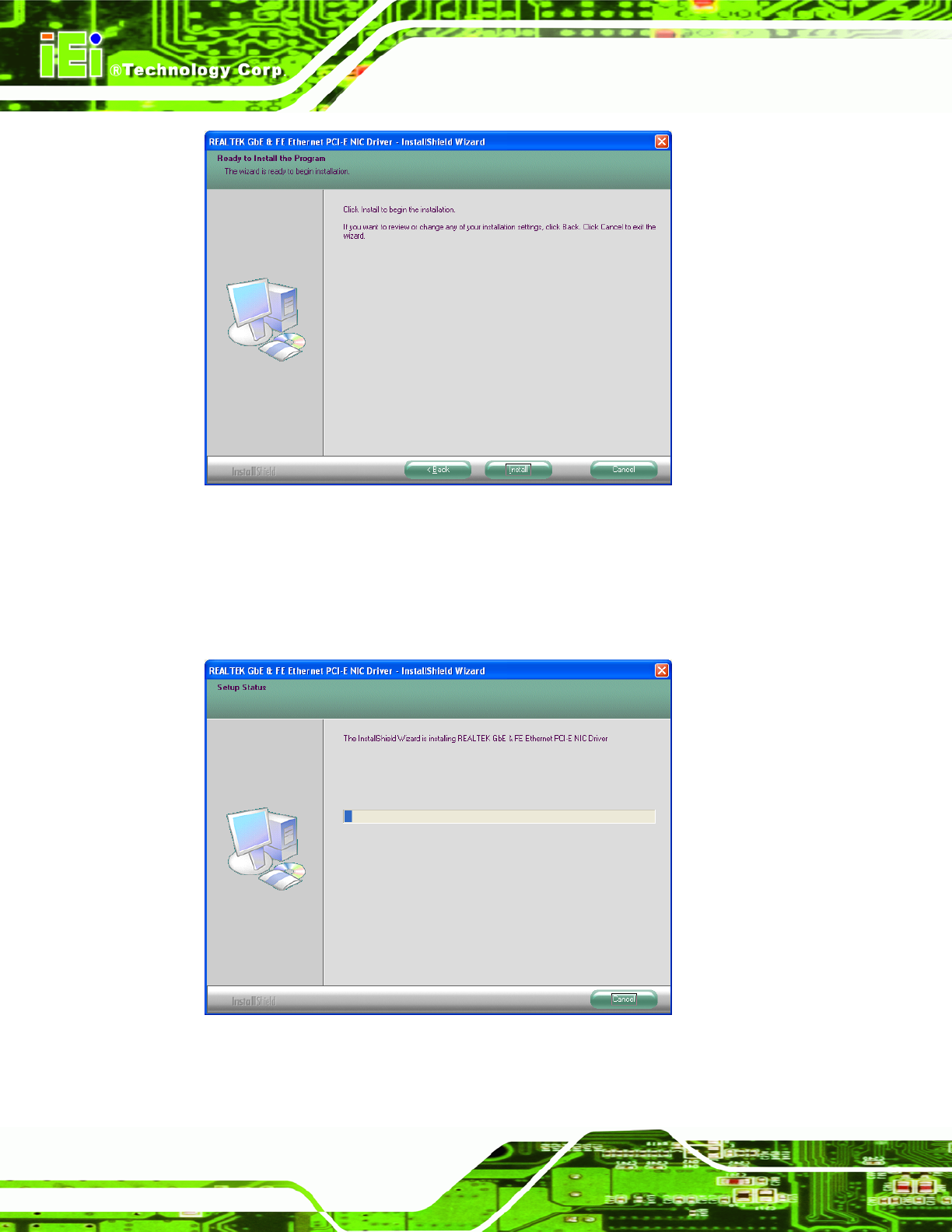

Figure 6-16: LAN Driver Welcome Screen
Step 6: The program begins to install.
Step 7: The installation progress can be monitored in the progress bar shown in
Figure
6-17.
Figure 6-17: LAN Driver Installation
Step 8: When the driver installation is complete, the screen in
Figure 6-18 appears.
