6.5 LAN Driver Installation
To install the LAN driver, please do the following.
Step 1: Access the driver list shown in
Figure 6-1 (See Section 6.2). Click “LAN”.
Step 2: The Welcome screen in
Figure 6-15 appears.

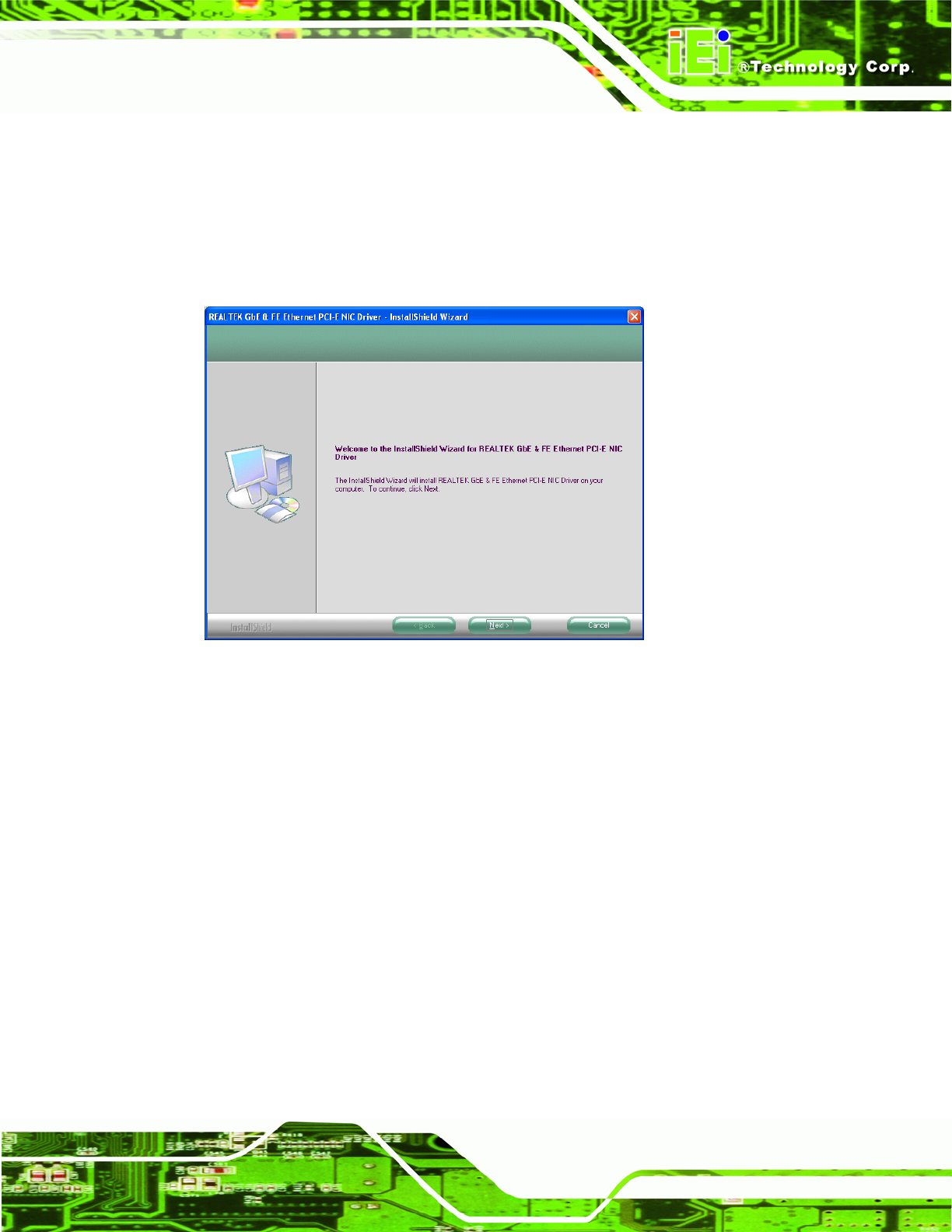

Figure 6-15: LAN Driver Welcome Screen
Step 3: Click Next to continue.
Step 4: The Ready to Install screen in
Figure 6-16 appears.
Step 5: Click Next to proceed with the installation.
