AFL-xxA-N26 Series Panel PC
Page 106

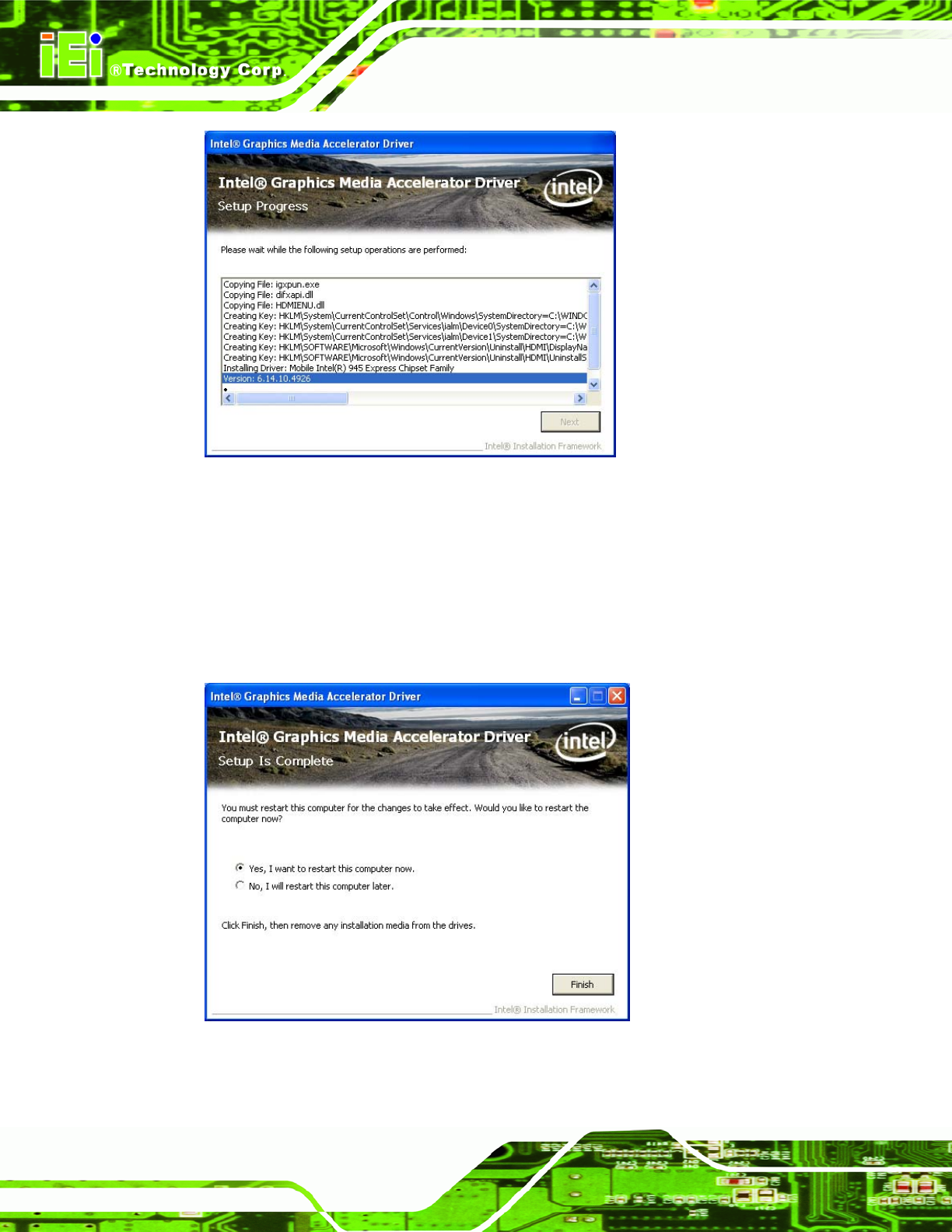

Figure 6-13: VGA Driver Setup Operations
Step 13: Once the Setup Operations are complete, click the Next icon to continue.
Step 14: The Finish screen appears.
Step 15: Select “Yes, I want to restart the computer now” and click the Finish icon.
See
Figure 6-14.
Figure 6-14: VGA Driver Installation Finish Screen
