AFL-xxA-N26 Series Panel PC
Page 102
Step 11: Once the Setup Operations are complete, click the Next icon to continue.
Step 12: The Finish screen appears.
Step 13: Select “Yes, I want to restart the computer now” and click the Finish icon.
See
Figure 6-7.

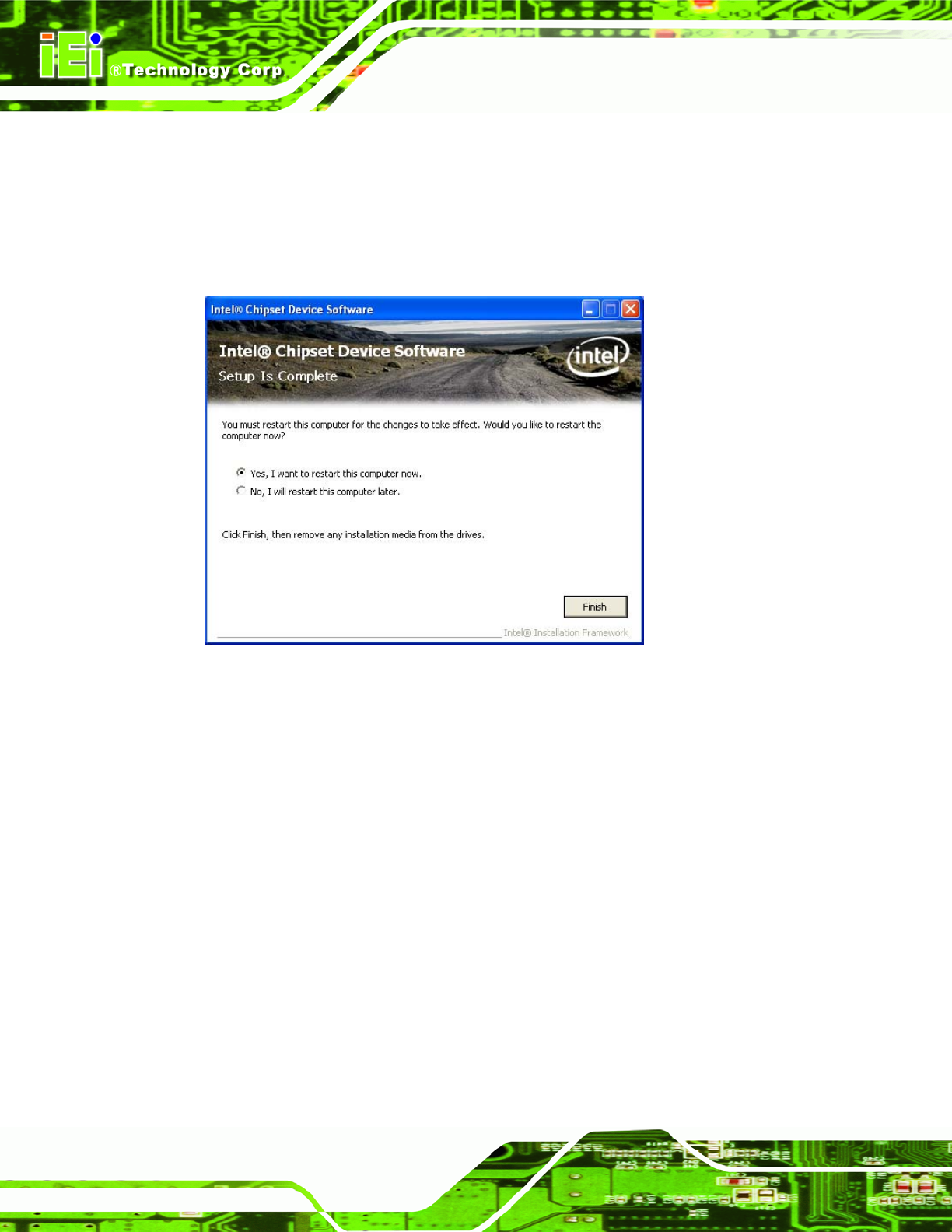

Figure 6-7: Chipset Driver Installation Finish Screen
6.4 VGA Driver Installation
To install the VGA driver, please do the following.
Step 1: Access the driver list shown in
Figure 6-1 (See Section 6.2). Click “VGA”.
Step 2: The VGA Read Me file in
Figure 6-8 appears.
Step 3: Click Next to continue.
