FOLUX LX Series Flat Panel PC
Page 56
4.4 Memory Module Replacement
The flat panel PC is preinstalled with a 256MB/512MB DDR memory module. If the
memory module is fail, follow the instructions below to replace the memory module.
Step 1: Remove the back cover. See Section
3.5 above.
Step 2: Remove the internal aluminum back cover. See Section
4.3 above.
Step 3: Locate the DDR memory module on the motherboard of the flat panel PC
(
Figure 4-12).

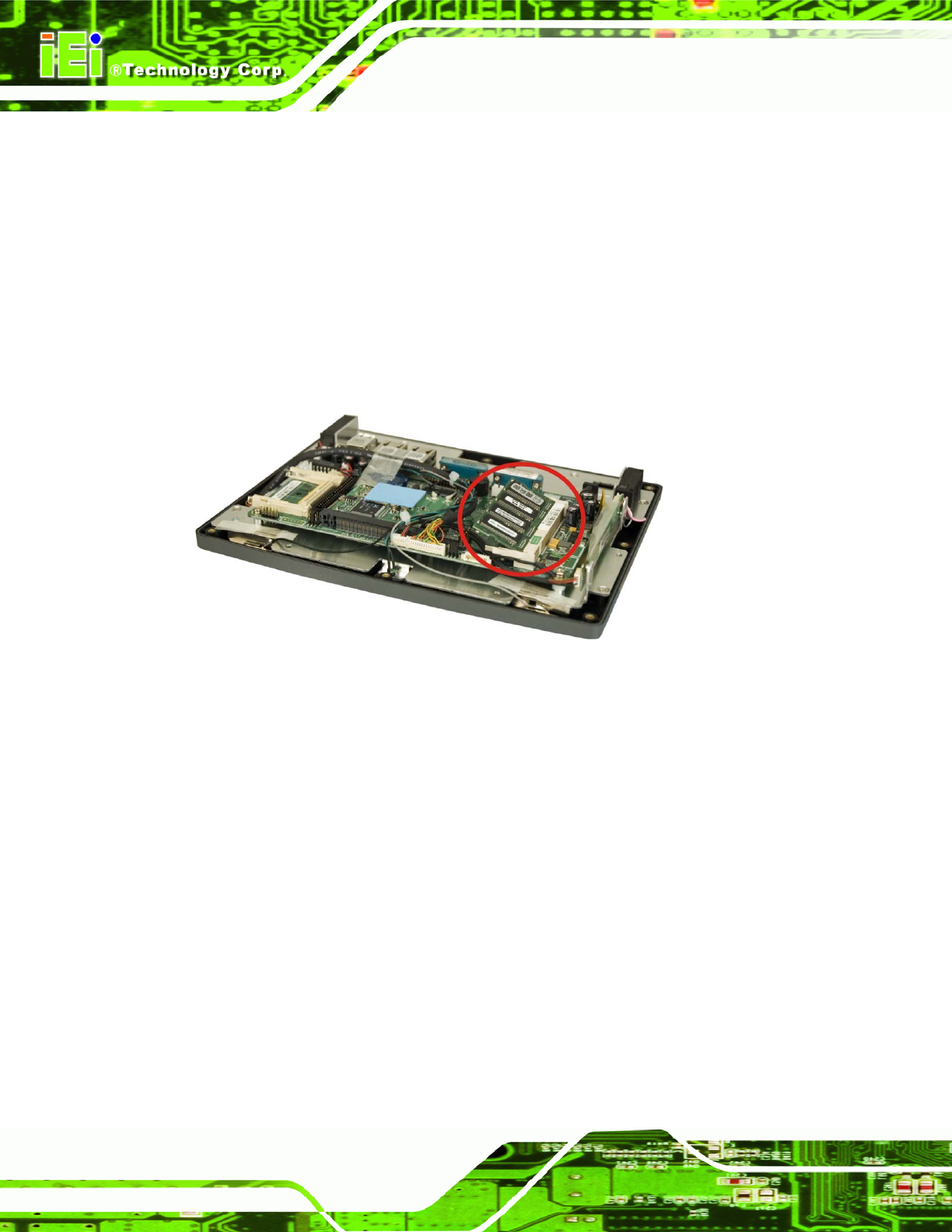

Figure 4-12: SO-DIMM Socket Location
Step 4: Remove the DDR memory module by pulling both the spring retainer clips
outward from the socket.
Step 5: Grasp the DDR memory module by the edges and carefully pull it out of the
socket.
Step 6: Install the new DDR memory module by pushing it into the socket at an angle
(
Figure 4-13).
Step 7: Gently pull the spring retainer clips of the SO-DIMM socket out and push the
rear of the DDR memory module down (
Figure 4-13).
Step 8: Release the spring retainer clips on the SO-DIMM socket. They clip into place
and secure the DDR memory module in the socket.Step 0:
