AFOLUX LX Series Flat Panel PC
Page 53

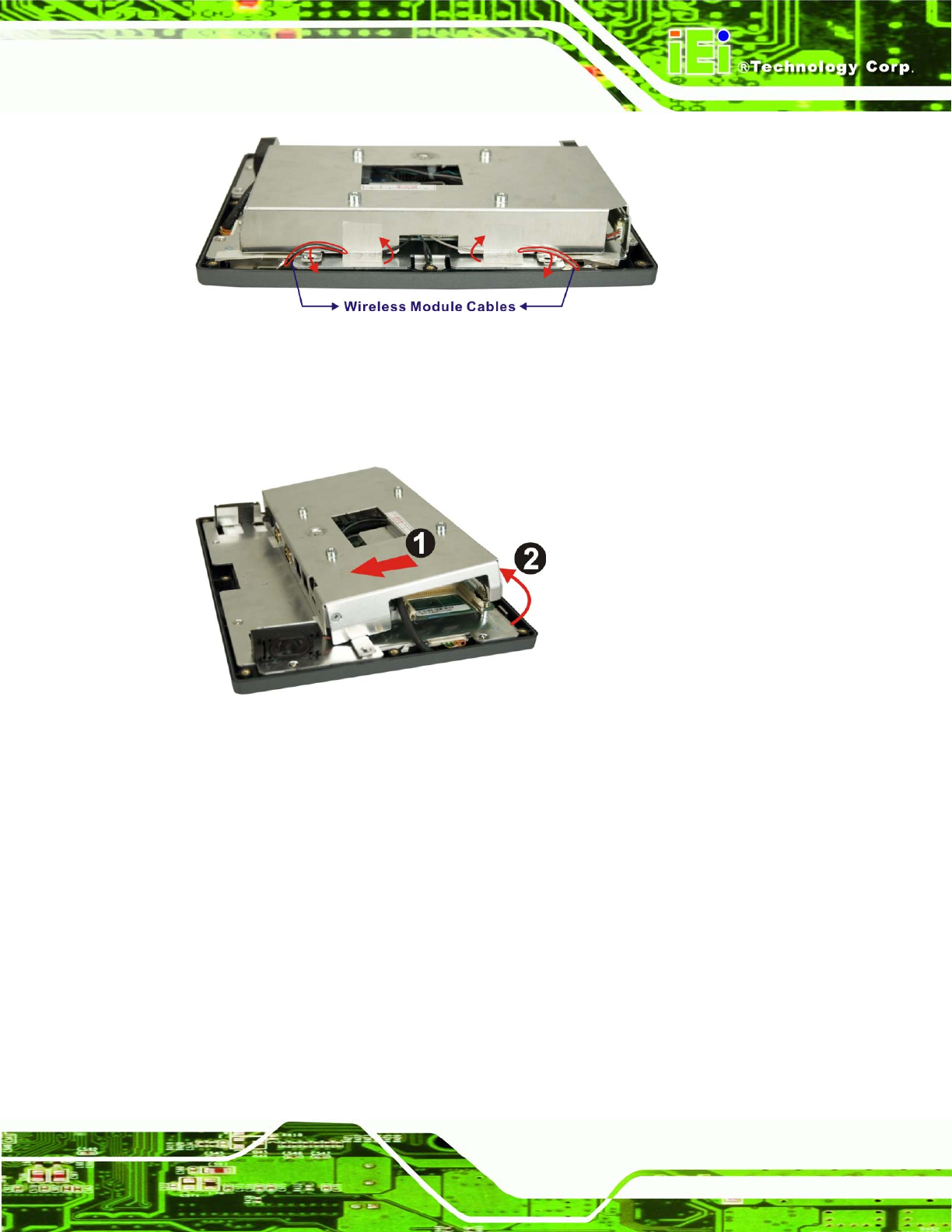

Figure 4-5: Wireless Module Cables
Step 5: Push the external interface connector apart from the aluminum cover and lift the
cover (
Figure 4-6).
Figure 4-6: The Internal Aluminum Cover Removal
Step 6: Disconnect the power switch cable (
Figure 4-7) from the motherboard and
remove the aluminum cover. Step 0:
