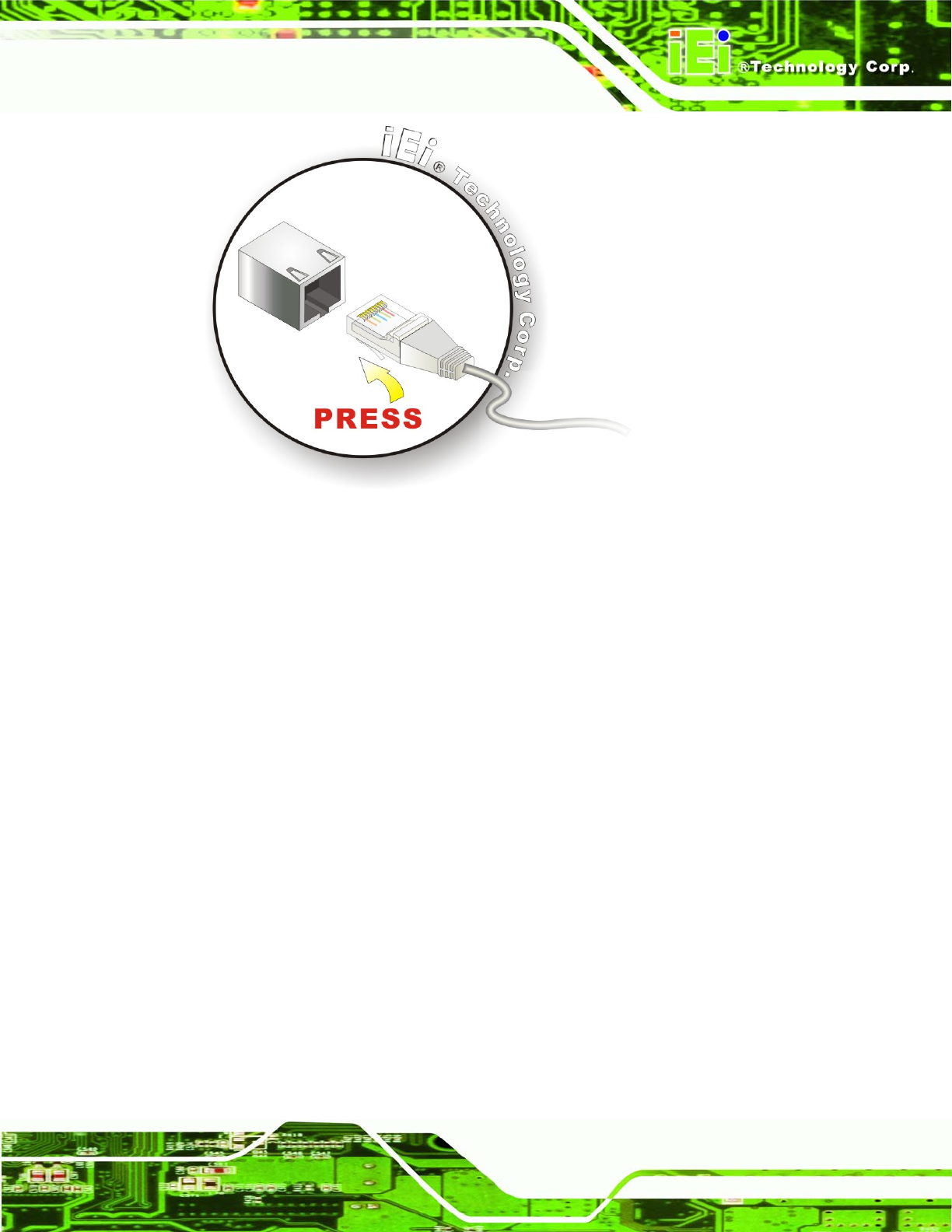

Figure 3-23: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
3.9.2 Serial Device Connection
The AFOLUX LX Series has two single female DB-9 connectors on the bottom panel for a
serial device. Follow the steps below to connect a serial device to the AFOLUX LX Series
panel PC.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 2.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the bottom panel. See
Figure 3-24.
