mounting clamps for AFL-07A-LX/ AFL-08A-LX and 6 rack mounting clamps for
AFL-10A-LX/AFL-12A-LX.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket (
Figure 3-21).

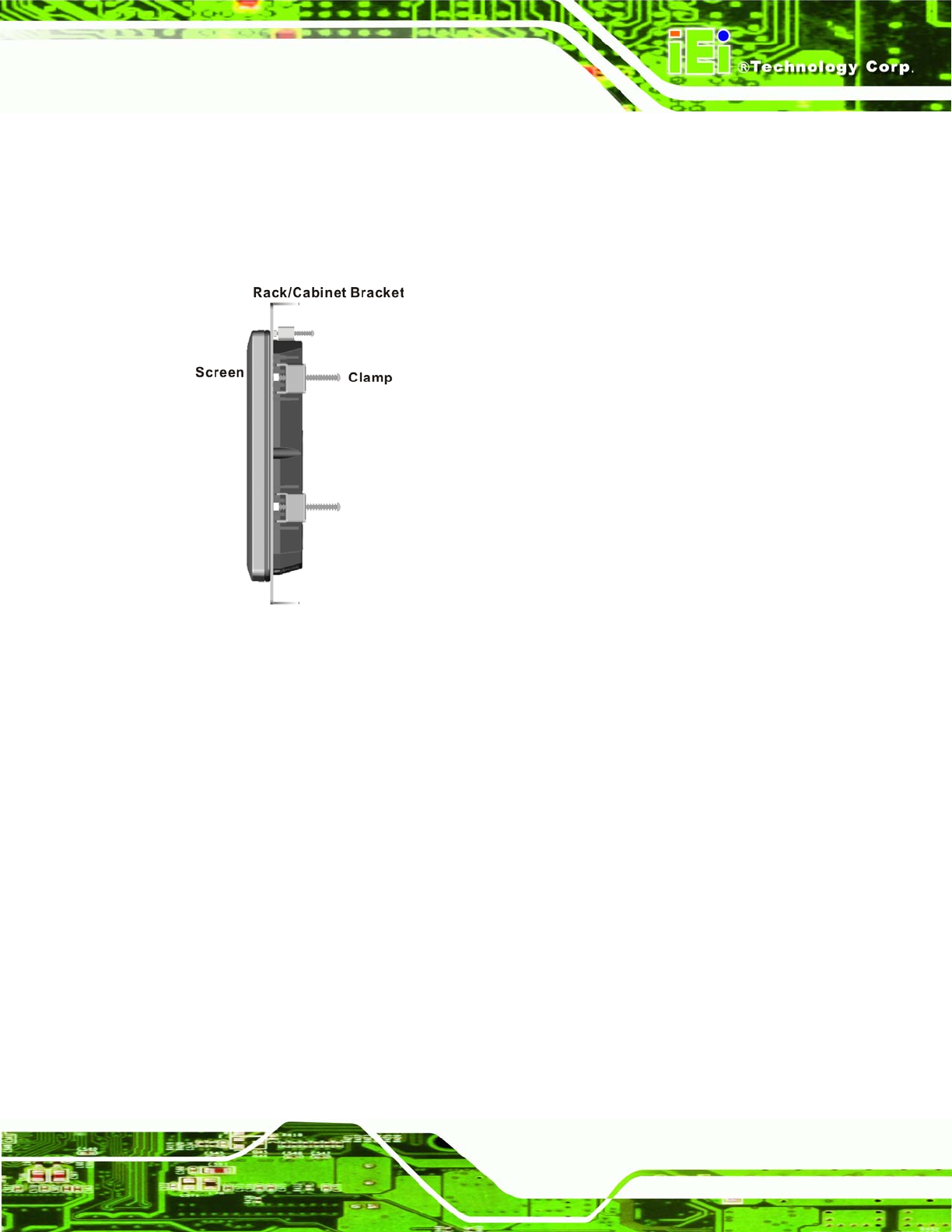

Figure 3-21: Secure the Rack/Cabinet Bracket (AFL-10A-LX/AFL-12A-LX)
Step 4: Slide the flat panel PC with the attached rack/cabinet bracket into a rack or
cabinet (
Figure 3-22).
