AFOLUX LX Series Flat Panel PC
Page 39

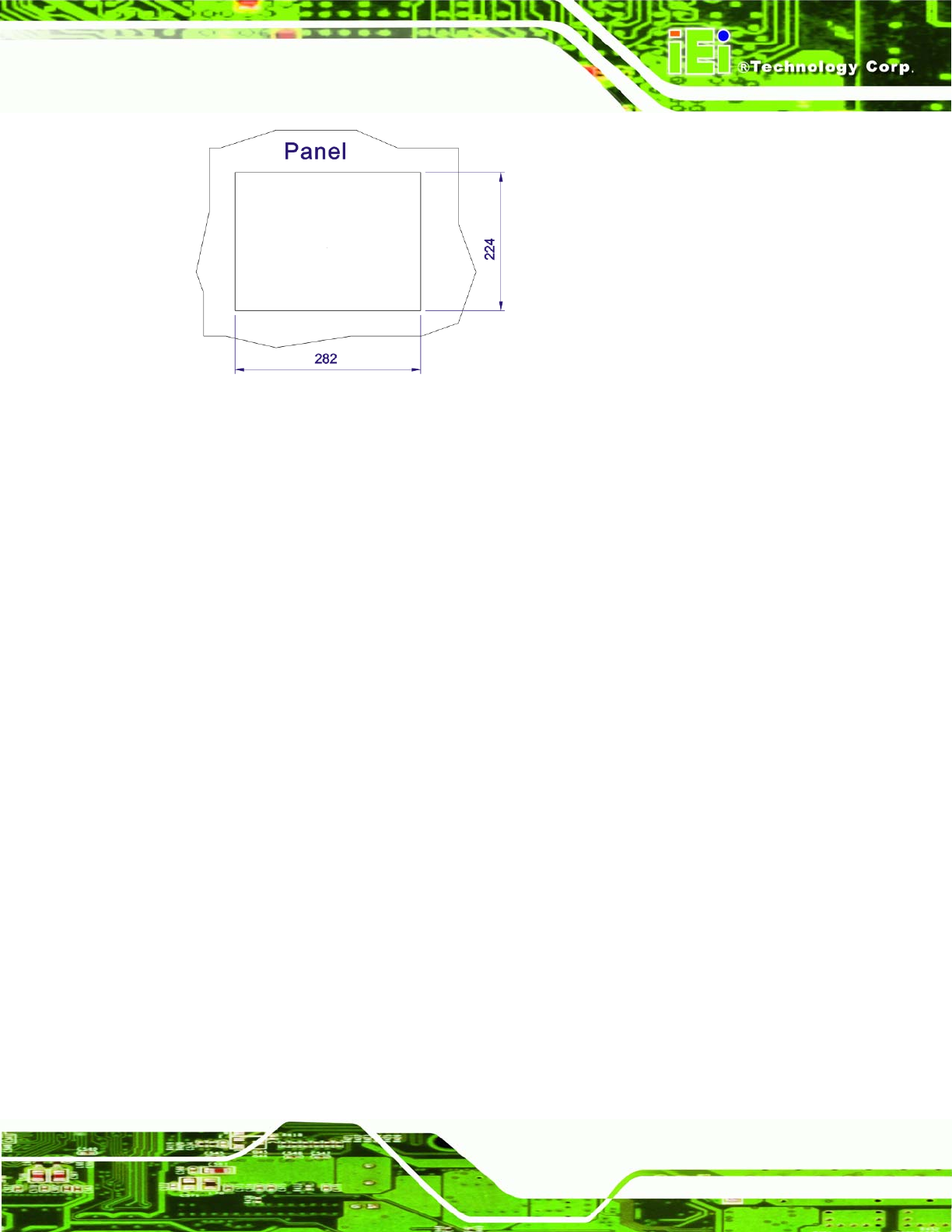

Figure 3-16: AFL-12A-LX Panel Opening
Step 3: Slide the flat panel PC through the hole until the aluminum frame is flush against
the panel.
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the chassis, behind the aluminum frame. There are a total of 4 panel mounting
clamps for AFL-07A-LX/ AFL-08A-LX and 6 panel mounting clamps for
AFL-10A-LX/AFL-12A-LX.
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the panel (
Figure 3-17).
Step 0:
