AFOLUX LX Series Flat Panel PC
Page 31
3.6 HDD Installation (AF-12A-LX Only)
To install the HDD into the AF-12A-LX, please follow the steps below:
Step 1: Remove the plastic back cover. See Section
3.5 above.
Step 2: Remove the eight retention screws securing the internal aluminum cover
(
Figure 3-5).

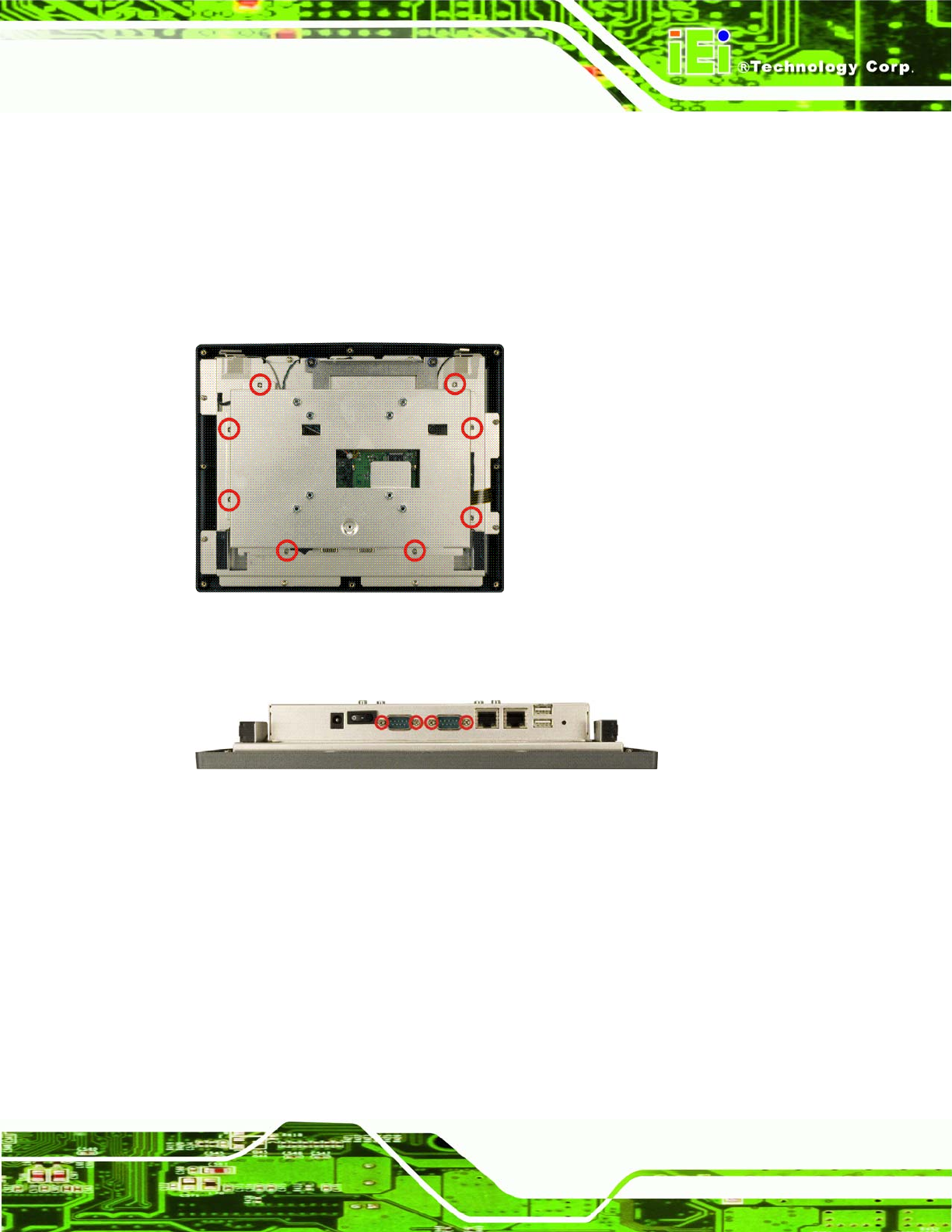

Figure 3-5: AFL-12A-LX Aluminum Back Cover Retention Screws
Step 3: Remove the four hexagonal pillars on the bottom panel.
Figure 3-6: Four Hexagonal Pillars on the Bottom Panel
Step 4: Push the external interface connector apart from the aluminum cover and lift the
aluminum cover off the AFL-12A-LX.
Step 5: Disconnect the power switch cable from the motherboard and remove the
aluminum cover.
Step 6: Remove the four HDD bracket retention screws (
Figure 3-7) and lift the HDD
bracket off the panel PC.
