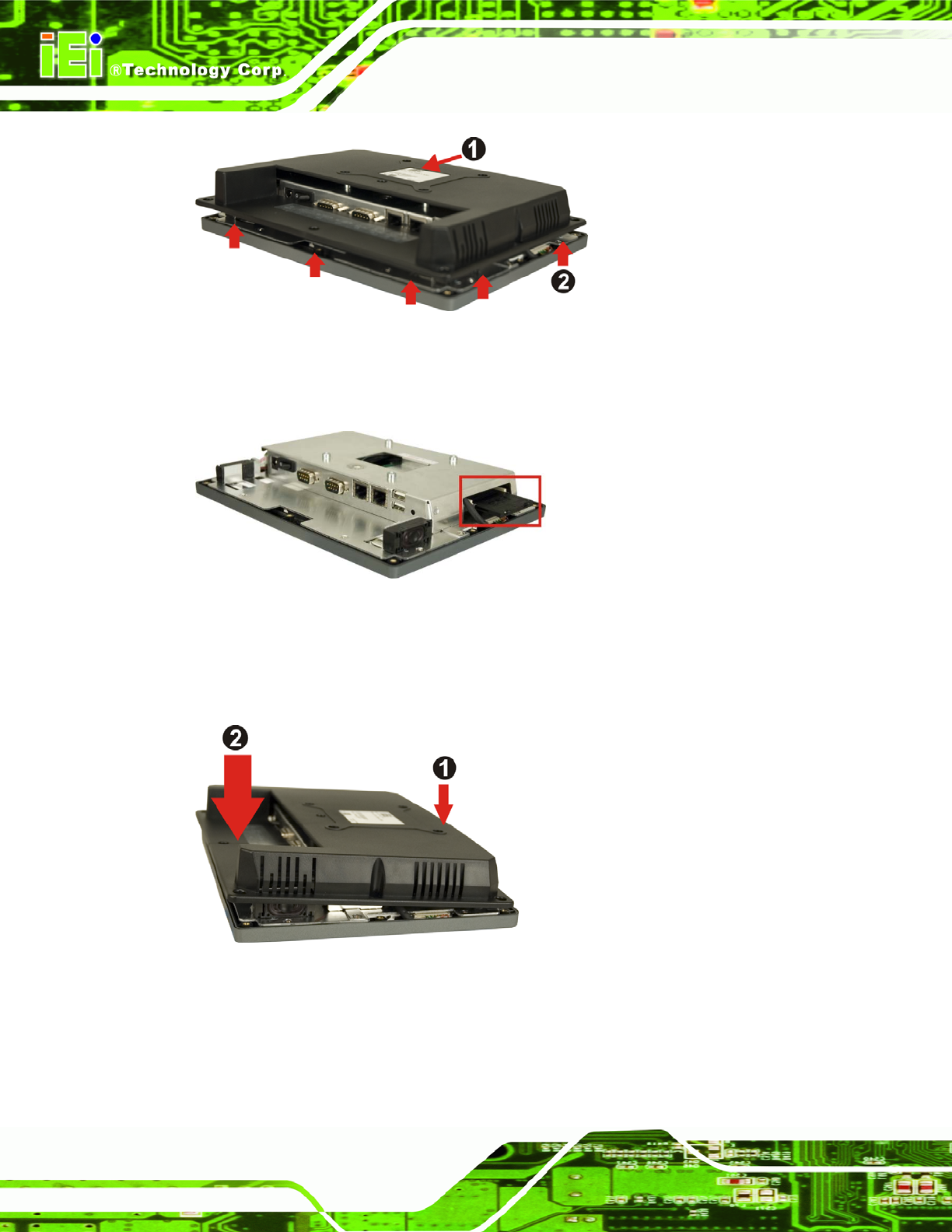

Figure 3-2: AFL-08A-LX Plastic Back Cover Removal
Step 3: Locate the CF slot. Insert a CF card into the slot (
Figure 3-3).
Figure 3-3: CF Card Location
Step 4: Replace the plastic back cover. For AFL-08A-LX, more strength is required
when pushing the bottom part of the cover down to the chassis (
Figure 3-4).
Figure 3-4: AFL-08A-LX Plastic Back Cover Replacement
Step 5: Once replaced reinsert the nine previously removed retention screws. Step 0:
