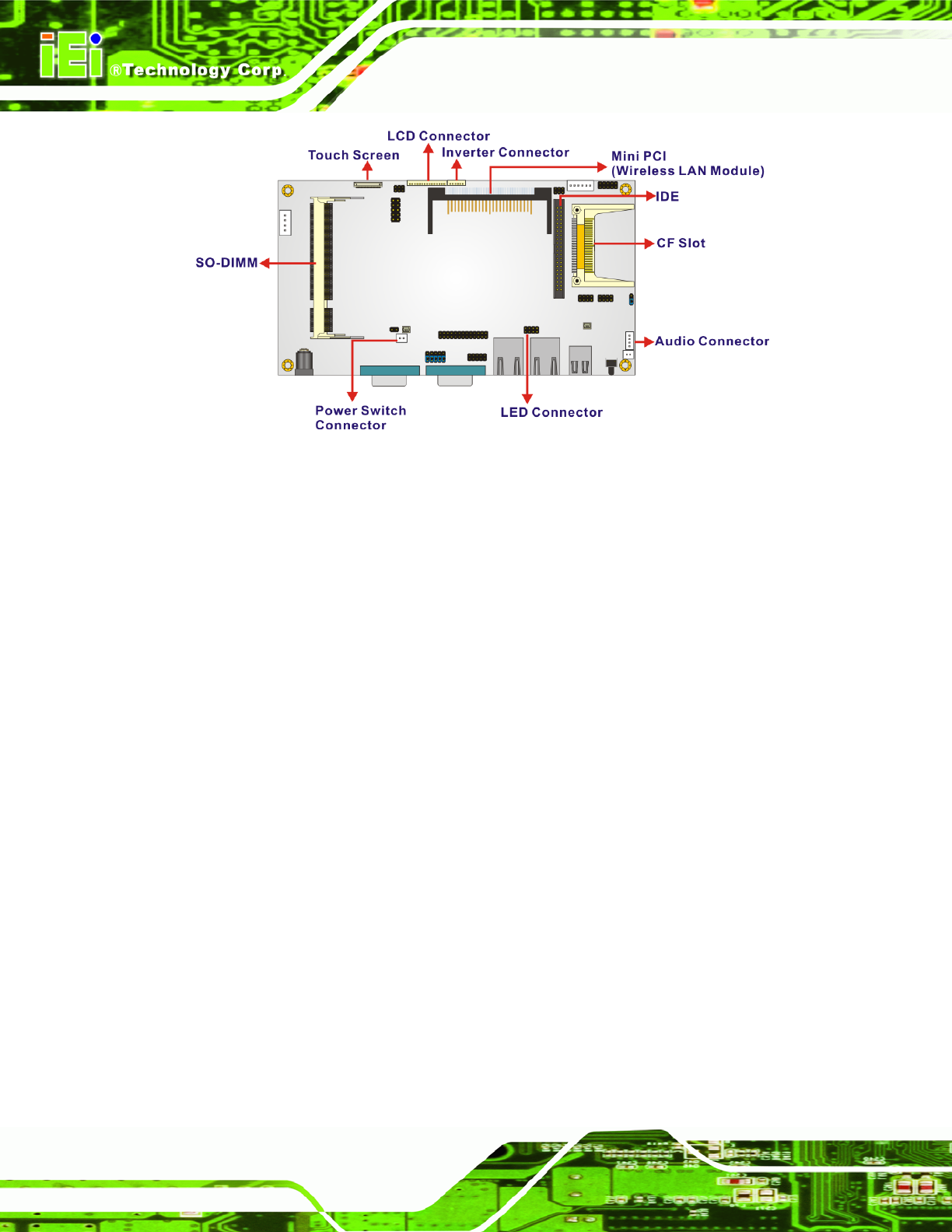

Figure 2-1: AFLMB-LX800 Connector Overview
2.6.4 External Peripheral Device Connectors
The peripheral device connectors listed below are located on the rear panel of the
AFLMB-LX800 motherboard.
2 x Ethernet connectors
2 x USB connectors
2 x Serial port connectors
1 x Reset button
1 x Power connector
