A
FOLUX LX Series Flat Panel PC
Page 6

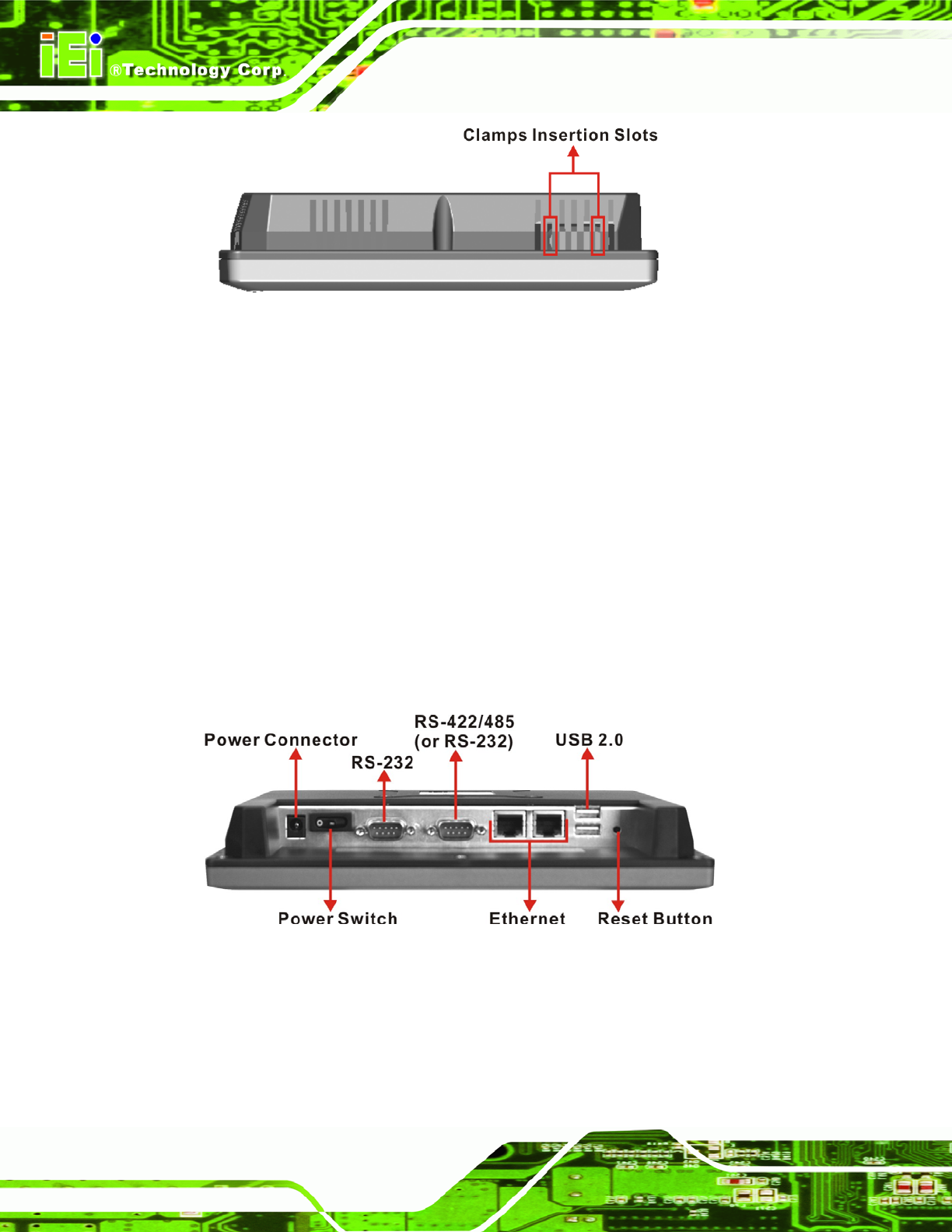

Figure 1-4: AFL-08A-LX Side View
1.2.5 Bottom Panel
The bottom panel of the AFOLUX LX series has the following I/O interfaces (Figure 1-5):
1 x RS-232 serial port connector
1 x RS-232 or RS-422/485 serial port connector (selected by a jumper)
1 x AC power adapter connector
2 x RJ-45 10/100Mbps Ethernet connectors
2 x USB 2.0 connectors
1 x Power switch
1 x Reset button
Figure 1-5: AFOLUX LX Series Bottom View
