3. LED indicators

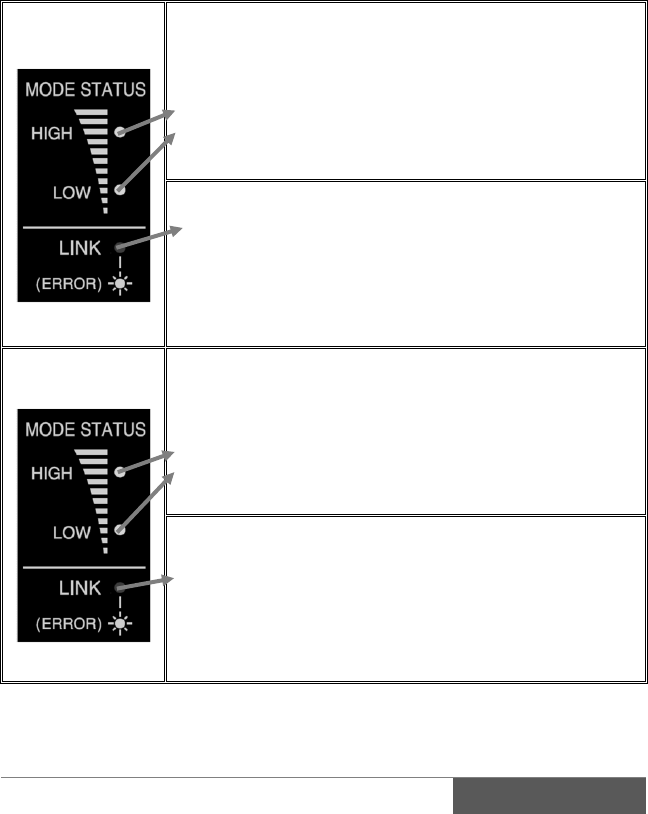

3.1. LED indicator functions
TX
MODE STATUS LED
Indicates manually selected transmission output
power mode (HIGH/LOW),
and the UNICAST/MULTICAST setting.
 HIGH : Two lights on.
 LOW : One light on.
 UNICAST : LED lights Green.
 MULTICAST : LED lights Amber.
LINK LED
Indicates the link status.
 Initializing/Mode changing : Red light on.
 Linked (no video signal) : Amber light on.
 Linked (with video signal) : Green light on.
 Link mode error : Amber blinking.
 Error / System fail : Red blinking.
RX
MODE STATUS LED
Indicates the strength of received signal while
linked, and the UNICAST/MULTICAST setting.
 Signal is strong : Two lights on.
 Signal is weak : One light on.
 UNICAST : LED lights green
 MULTICAST : LED lights Amber.
LINK LED
Indicates the link status.
 Initializing/Mode changing : Red light on.
 Linked (no video signal) : Amber light on.
 Linked (with video signal) : Green light on.
 Link mode error : Amber blinking.
 Error / System fail : Red blinking.
