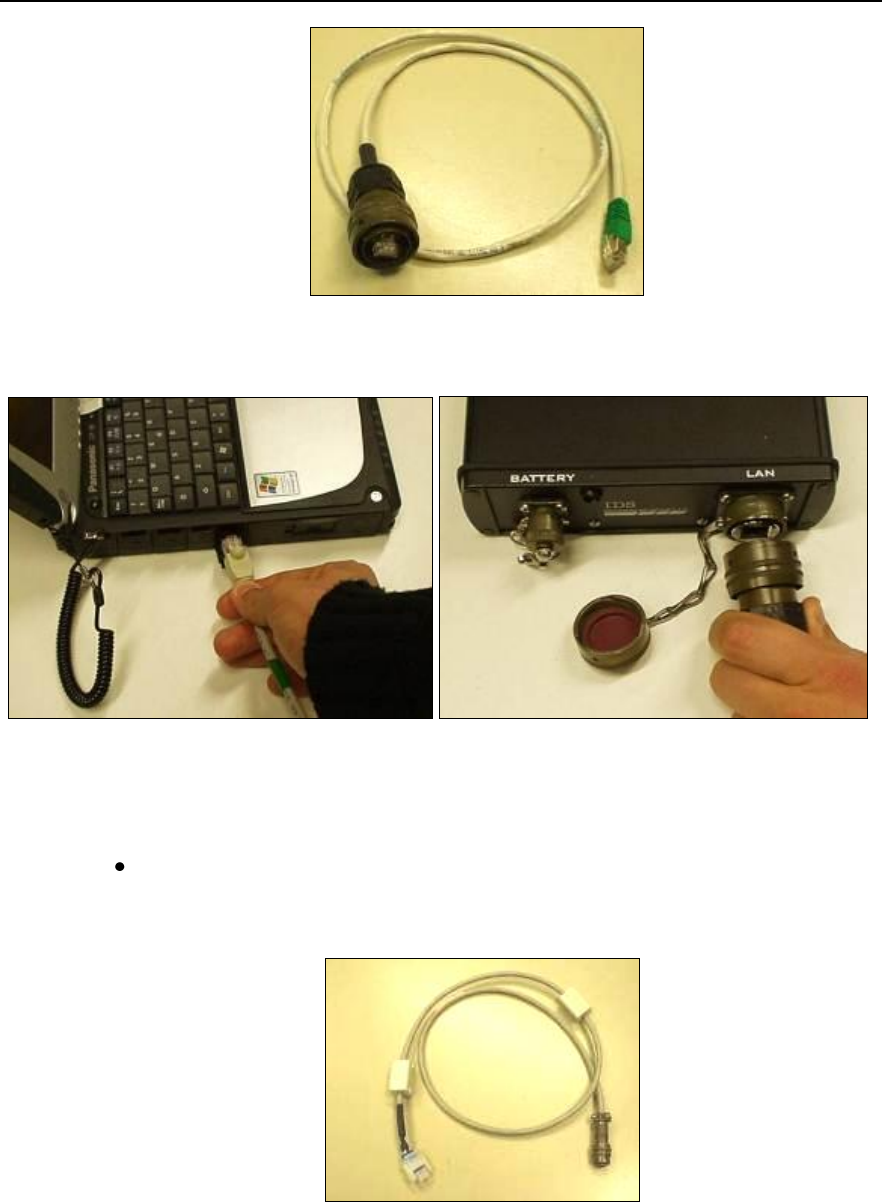

Fig. 5.2 – Lan Cable
Fig. 5.3 – Lan Cable connection between the Notebook Computer and the DAD
Control Unit
Connect the DAD Control Unit to the Battery using the Battery Cable
(Fig. 5.4) as shown in (Fig. 5.5)
Fig. 5.4 – Battery Cable
