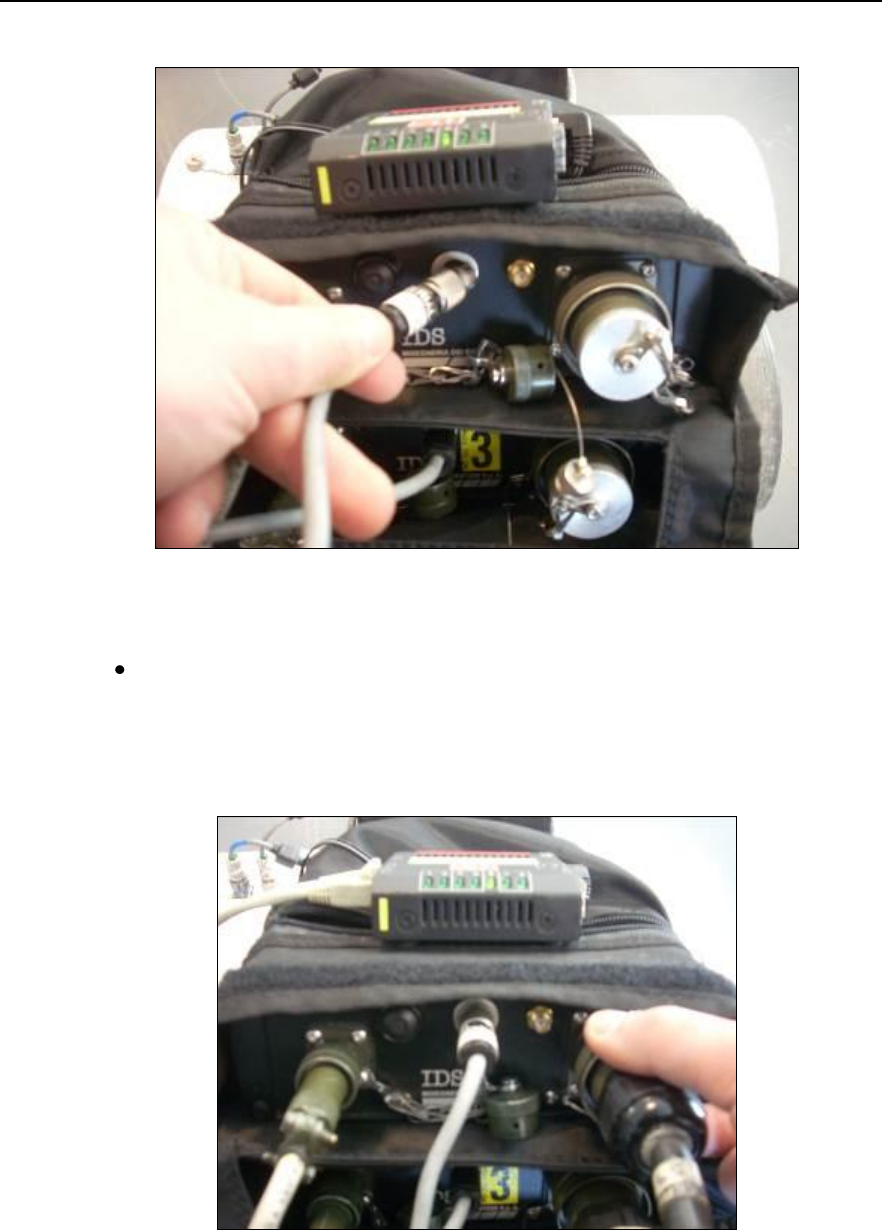

Fig. 3.5 – Synchronization cable
Link the waterproof LAN connectors from the LAN port of the DAD units
to the port 1&2 of the Ethernet switch (Fig. 3.6), then take the other LAN
cable that will connect port 3 of the switch to the acquisition laptop (Fig.
3.7).
Fig. 3.6 – LAN cable from DAD to switch
