Connect the two power supply cable from the Battery port of the DAD
units to the battery plugs (Fig. 3.3), also the Ethernet switch must be
supplied in this way (Fig. 3.4).

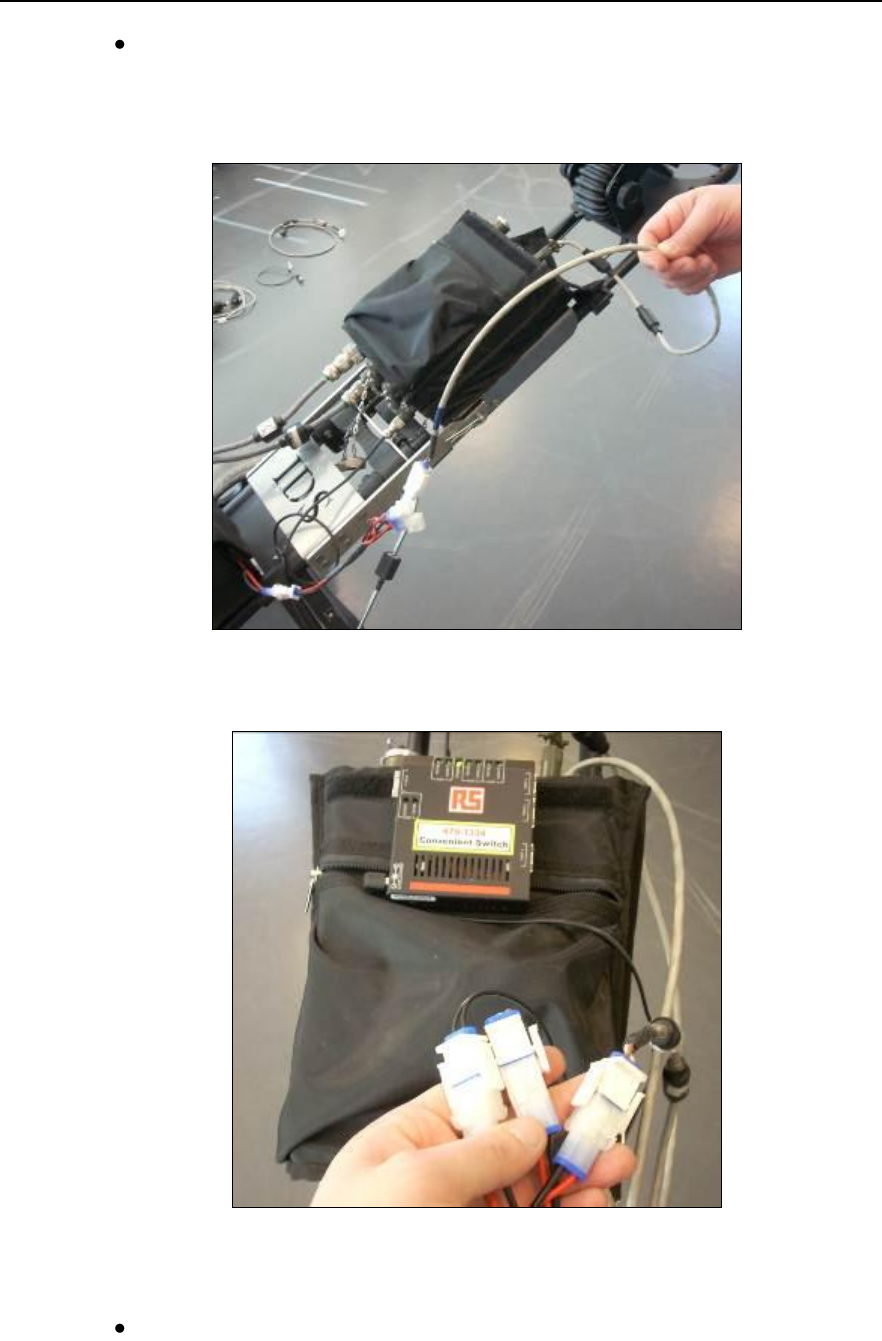

Fig. 3.3 – Battery cable
Fig. 3.4 – Ethernet switch power supply cable
Connect the synchronization ports of the two DAD with the
synchronization cable (Fig. 3.5)
