User Manual

IDS Ingegneria Dei Sistemi S.p.A.
-
14 / 31

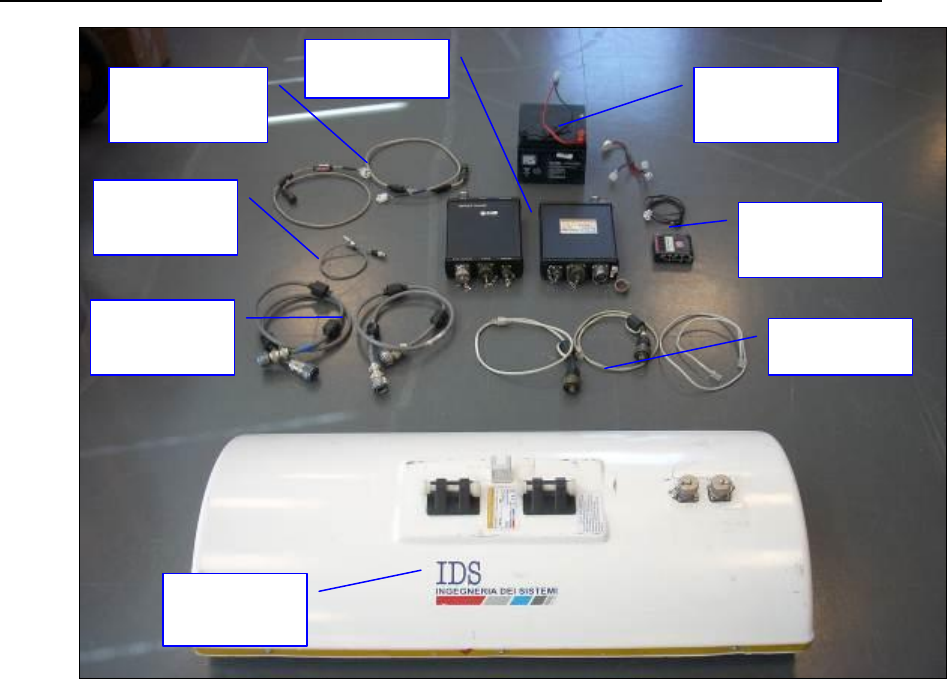

Fig. 1.2 – Hi-Bright Equipment
2. MOUNTING UP THE SYSTEM
First you have to link the antenna array to the trolley. To do this make the lower
end of the trolley fit the upper junction of the array and fix them together with
their dedicated plastic screws (Fig. 2.1). After that put in place the metallic bar and
pull down the lever to completely lock the antenna (Fig. 2.2).
Battery &
Adapter
Power supply
Cables
Antenna
Array
Synchro
cable
Antenna
cables
Ethernet
switch
LAN cables
DAD units
