1. HARDWARE EQUIPMENT OF THE HI-BRIGHT SYSTEM
This handbook shows you the equipment you will receive and guides you through
the configuration of your Hi-Bright system.
The system is composed of:
A Trolley

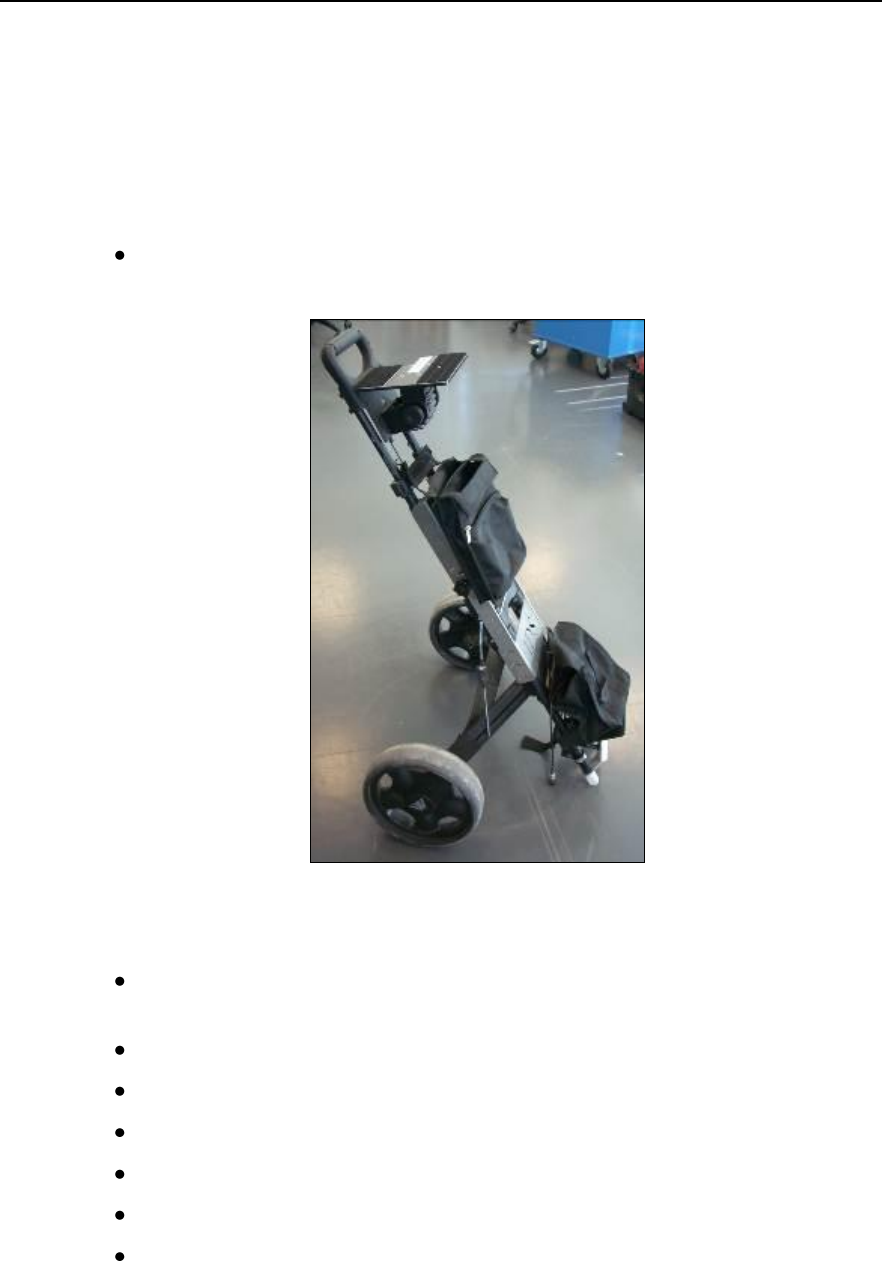

Fig. 1.1 – Hi-Bright trolley
An array of antennas (16 channels, 8 in HH polarization, 8 in VV
polarization, central frequency 2 GHz)
Two DAD control units
One Ethernet switch + power supply cable
One Battery kit (battery + adapter 1 to 3 plugs)
Two antenna cables
Three LAN cables (two with waterproof connectors)
Two DAD power supply cables
