User manual

3

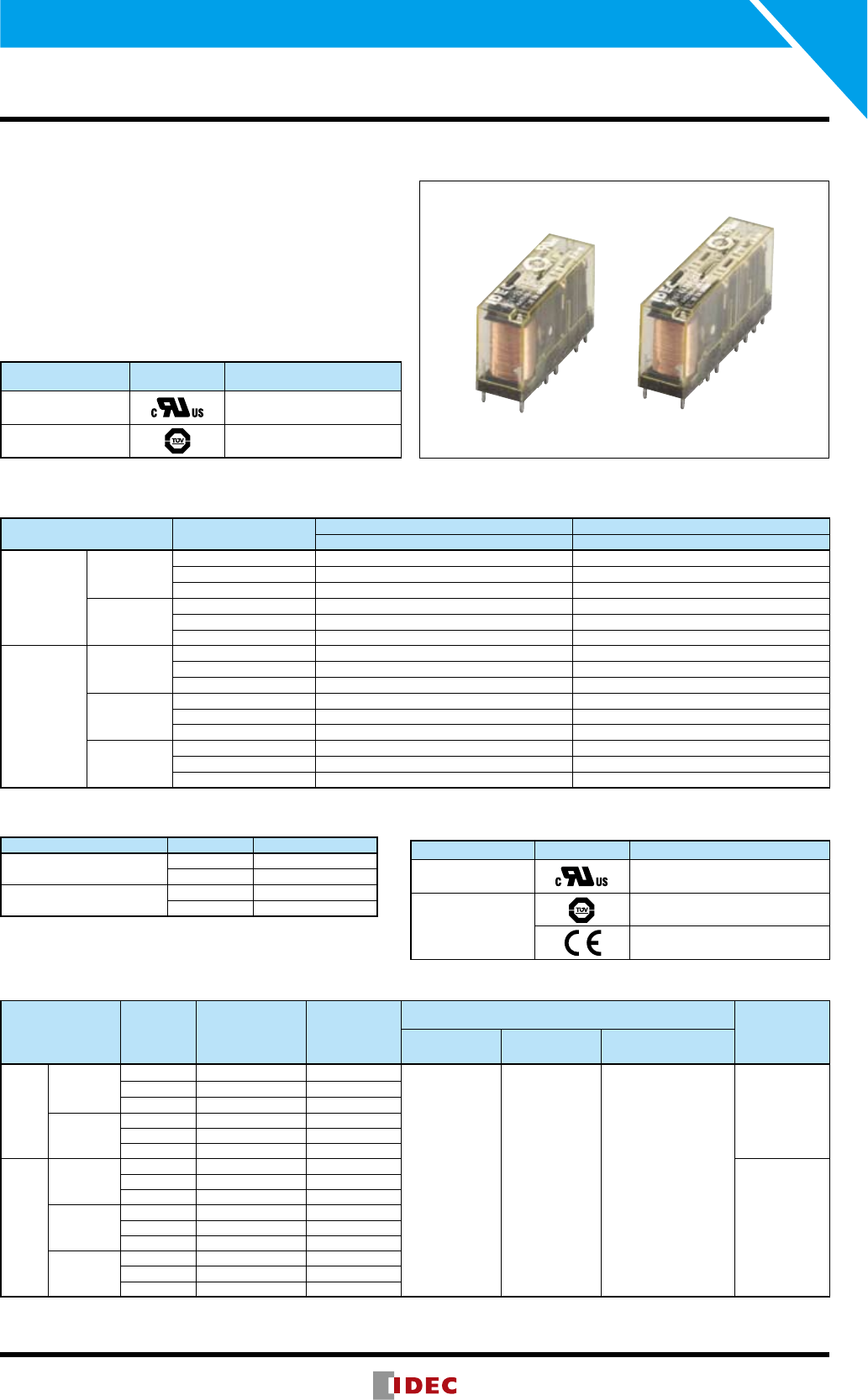

RF1V Force Guided Relays / SF1V Relay Sockets
Force guided contact mechanism •
(EN50205 Type A TÜV approved)
Contactconguration •
4-pole (2NO-2NC, 3NO-1NC)
6-pole (4NO-2NC, 5NO-1NC, 3NO-3NC)
Built-in LED indicator available.•
Fast response time (8 ms maximum).•
High shock resistance (200 m/s•
2
minimum)
Finger-safe DIN rail mount socket and PC board •
mount socket.
Applicable Standard Marking
CerticationOrganization/
File No.
UL508
CSA C22.2 No.14
UL/c-UL File No. E55996
EN50205
EN61810-1
TÜV SÜD
Compact and EN compliant RF1V force guided relays.
Sockets•
Types No. of Poles Ordering Type No.
DIN Rail Mount Sockets
4 SF1V-4-07L
6 SF1V-6-07L
PC Board Mount Sockets
4 SF1V-4-61
6 SF1V-6-61
CerticationforSockets
Applicable Standard Marking CerticationOrganization/FileNo.
UL508
CSA C22.2 No.14
UL/c-UL File No. E62437
EN147000
EN147100
TÜV SÜD
EC Low Voltage Directive
(DIN rail mount sockets only)
Types
Force Guided Relays•
Contact Rated Coil Voltage
Without LED Indicator With LED Indicator
Ordering Type No. Ordering Type No.
4-pole
2NO-2NC
12V DC RF1V-2A2B-D12 RF1V-2A2BL-D12
24V DC RF1V-2A2B-D24 RF1V-2A2BL-D24
48V DC RF1V-2A2B-D48 RF1V-2A2BL-D48
3NO-1NC
12V DC RF1V-3A1B-D12 RF1V-3A1BL-D12
24V DC RF1V-3A1B-D24 RF1V-3A1BL-D24
48V DC RF1V-3A1B-D48 RF1V-3A1BL-D48
6-pole
4NO-2NC
12V DC RF1V-4A2B-D12 RF1V-4A2BL-D12
24V DC RF1V-4A2B-D24 RF1V-4A2BL-D24
48V DC RF1V-4A2B-D48 RF1V-4A2BL-D48
5NO-1NC
12V DC RF1V-5A1B-D12 RF1V-5A1BL-D12
24V DC RF1V-5A1B-D24 RF1V-5A1BL-D24
48V DC RF1V-5A1B-D48 RF1V-5A1BL-D48
3NO-3NC
12V DC RF1V-3A3B-D12 RF1V-3A3BL-D12
24V DC RF1V-3A3B-D24 RF1V-3A3BL-D24
48V DC RF1V-3A3B-D48 RF1V-3A3BL-D48
Coil Ratings
Contact
Rated Coil
Voltage (V)
Rated Current
(mA) ±10%
(at 20°C) (Note 1)
Coil
Resistance(Ω)
±10% (at 20°C)
Operating Characteristics
(at 20°C)
Power
Consumption
Pickup Voltage Dropout Voltage
Maximum Continuous
Applied Voltage (Note 2)
4-pole
2NO-2NC
12V DC 30 400
75% maximum 10% minimum 110%
Approx. 0.36W
24V DC 15 1600
48V DC 7.5 6400
3NO-1NC
12V DC 30 400
24V DC 15 1600
48V DC 7.5 6400
6-pole
4NO-2NC
12V DC 41.7 288
Approx. 0.5W
24V DC 20.8 1152
48V DC 10.4 4608
5NO-1NC
12V DC 41.7 288
24V DC 20.8 1152
48V DC 10.4 4608
3NO-3NC
12V DC 41.7 288
24V DC 20.8 1152
48V DC 10.4 4608
Note 1: For relays with LED indicator, the rated current increases by approx. 2 mA.
Note 2: Maximum continuous applied voltage is the maximum voltage that can be applied to relay coils.
(090319)
