Owner's Manual

ADS-AR-CHR03 maestro.idatalink.com
DODGE CHALLENGER WITH HARMAN KARDON 2012-2015
Automotive Data Solutions Inc. © 2017
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
5
6
7
8
10
11
15
17

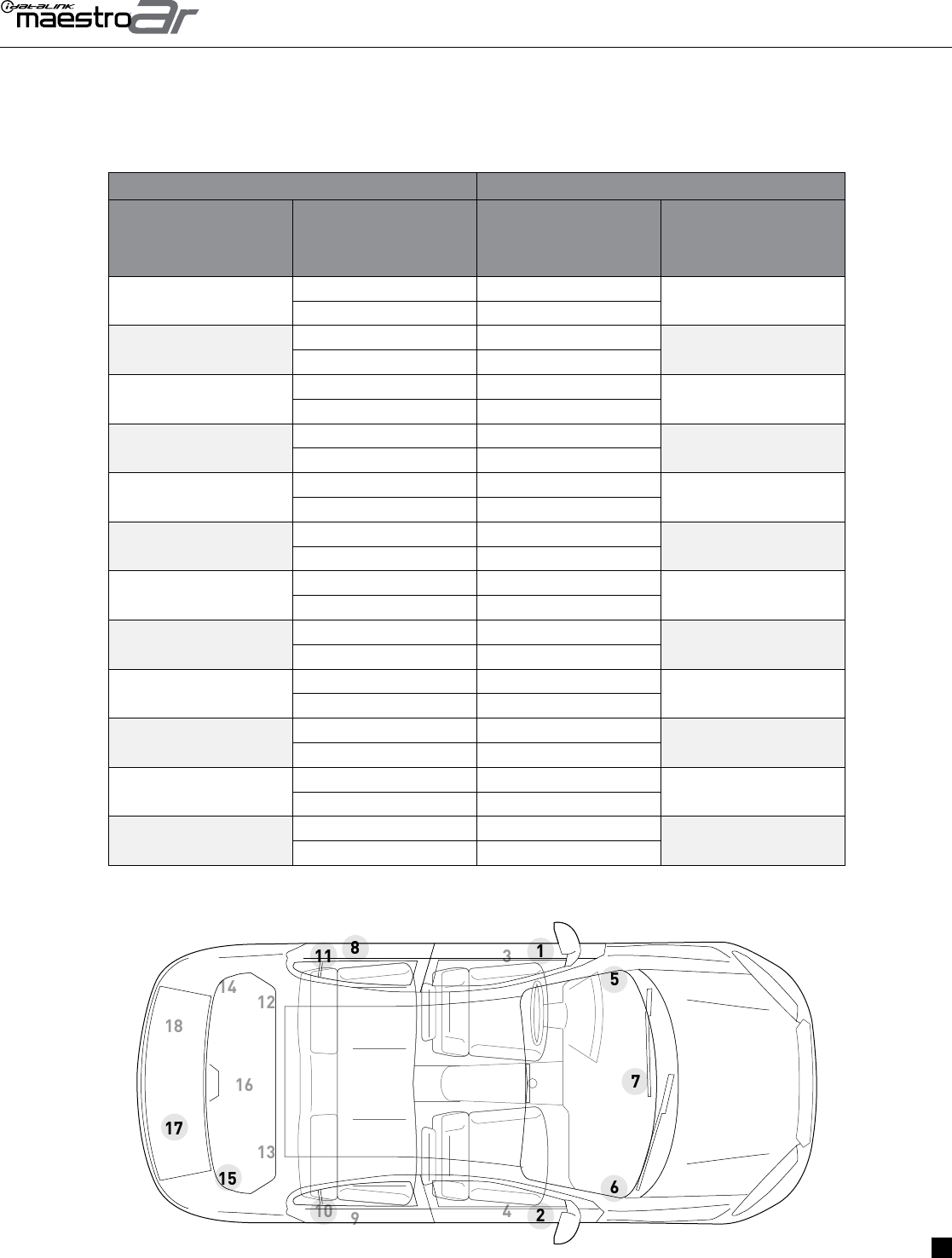

VEHICLE WIRE REFERENCE CHART
T-Harness Wires Vehicle Wires
Wire
Tag
Wire
Color
Speaker Wire Description
Component
Position
LEFT FRONT 1
White Left Front Door Speaker (+)
1
White/Black Left Front Door Speaker (-)
LEFT FRONT 2
White Left Front Tweeter on Dash (+)
5
White/Red Left Front Tweeter on Dash (-)
RIGHT FRONT 1
Gray Right Front Door Speaker (+)
2
Gray/Black Right Front Door Speaker (-)
RIGHT FRONT 2
Gray/Red Right Front Tweeter on Dash (+)
6
Gray Right Front Tweeter on Dash (-)
LEFT REAR 1
Green/Black Left Rear Door Tweeter (+)
11
Green Left Rear Door Tweeter (-)
LEFT REAR 2
Green/Red Subwoofer 1 (+)
17
Green Subwoofer 1 (-)
LEFT REAR 3
Green/White Left Rear Door Speaker (+)
8
Green Left Rear Door Speaker (-)
RIGHT REAR 1
Purple Right Rear Tweeter (+)
10
Purple/Black Right Rear Tweeter (-)
RIGHT REAR 2
Purple Right Rear Door Speaker (+)
10
Purple/Red Right Rear Door Speaker (-)
RIGHT REAR 3
Purple Subwoofer 2 (+)
17
Purple/White Subwoofer 2 (-)
CENTER 1
Orange Center (+)
7
Orange/Black Center (-)
SUB 1
Black/White Subwoofer 3 (+)
15
Black Subwoofer 3 (-)
Amplifi er location: Driver kick panel
Note: The amplifi er output colors and labels on the AR-CH3 T-harness do not correspond to the vehicle. For vehicle specifi c wiring
designation, follow this wiring chart.
