Datasheet

Technology GmbH
www.raidsonic.de
Type-C
®

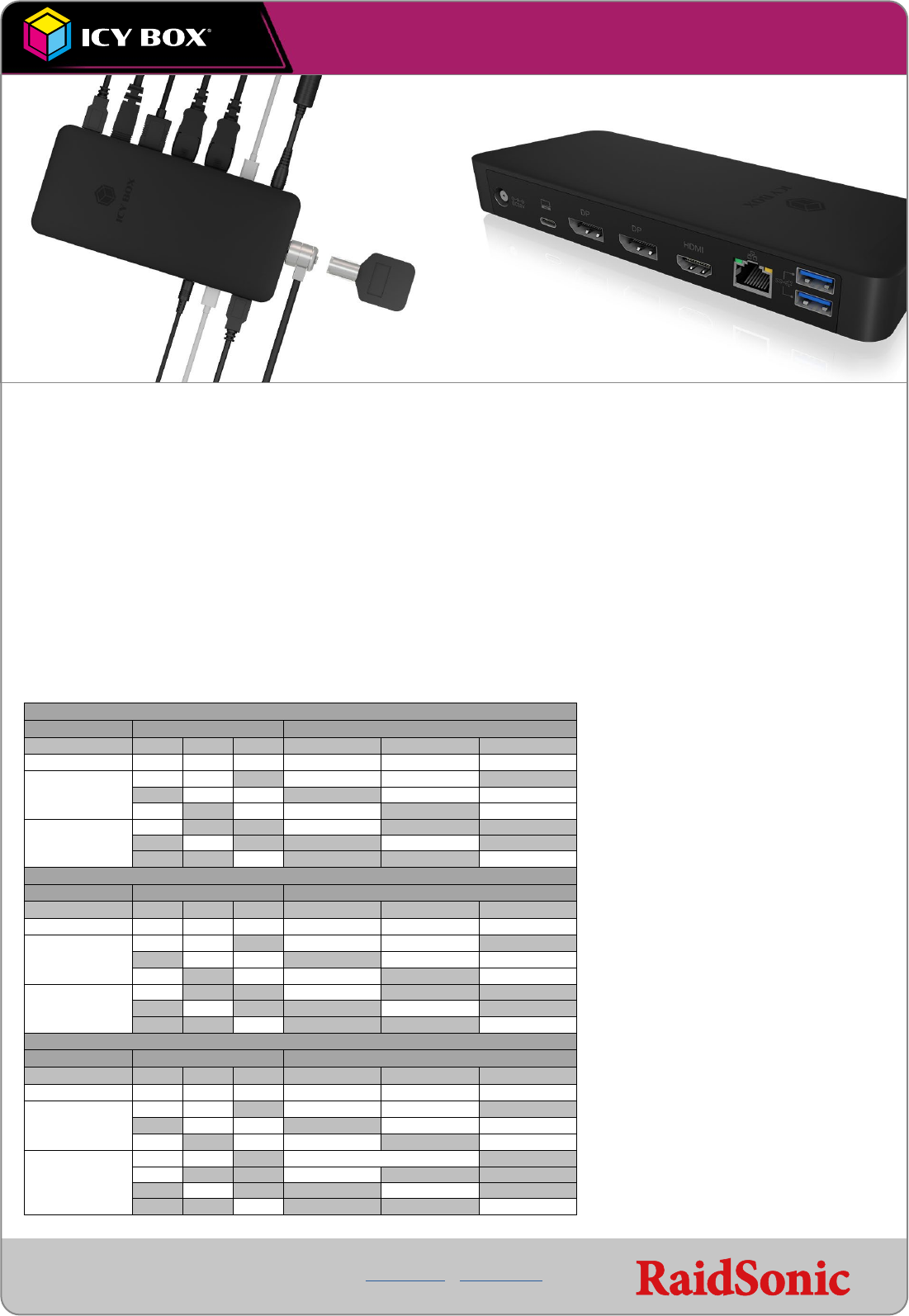

Notebook DockingStation with triple video output
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: [phone] – 468 900 (Sales) • Fax: [phone] – 468 901 • [e-mail] • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
System requirements
• Host notebook with an available USB Type-C
®
port (in order to ensure full functionality of the dock, the host USB Type-C
®
port must support USB Power Delivery and
DisplayPort
™
Alt Mode or Thunderbolt
™
3).
Note: The DockingStation can still be used with a host notebook with a USB Type-C
®
port that does not support Power Delivery (but still has to support DisplayPort
™
Alt
Mode). In this setting, the DockingStation will not provide power to your host notebook.
• HDMI
®
and DisplayPort
™
enabled display(s) with cables as needed (for additional external displays)
• 4K-capable displays are required to achieve up to 3840x2160@30/60 Hz resolution (DP
™
1.4).
• To reach maximum supported resolutions, your host computer must support DisplayPort
™
1.4 via USB Type-C
®
at least.
• Any of the following operating systems: Windows
®
, macOS
®
• Note: macOS
®
only supports dual and triple video output in mirror mode, SST (Single Stream Protocol)
Video matrix design (DP 1.2 HBR2), maximum resoluons
Inputs (plug-in) Output
Number of displays DP
™
1 DP
™
2 HDMI
®
DP
™
1 DP
™
2 HDMI
®
Triple video output* DP
™
1 DP
™
2 HDMI
®
1920x1080@30 Hz 1920x1080@30 Hz 1920x1080@30 Hz
Dual video output
DP
™
1 DP
™
2
1920x1080@60 Hz 1920x1080@60 Hz
DP
™
2 HDMI
®
1920x1080@60 Hz 1920x1080@60 Hz
DP
™
1 HDMI
®
1920x1080@60 Hz 1920x1080@60 Hz
Single video output
DP
™
1
3840x2160@30 Hz
DP
™
2
3840x2160@30 Hz
HDMI
®
3840x2160@30 Hz
Video matrix design (DP 1.4 HBR3), maximum resoluons
Inputs (plug-in) Output
Number of displays DP
™
1 DP
™
2 HDMI
®
DP
™
1 DP
™
2 HDMI
®
Triple video output* DP
™
1 DP
™
2 HDMI
®
3840x2160@30 Hz 3840x2160@30 Hz 3840x2160@30 Hz
Dual video output
DP
™
1 DP
™
2
3840x2160@60 Hz 3840x2160@60 Hz
DP
™
2 HDMI
®
3840x2160@60 Hz 3840x2160@60 Hz
DP
™
1 HDMI
®
3840x2160@60 Hz 3840x2160@60 Hz
Single video output
DP
™
1
3840x2160@60 Hz
DP
™
2
3840x2160@60 Hz
HDMI
®
3840x2160@60 Hz
Video matrix design (DP 1.4 HBR3-DSC1.2), maximum resoluons
Inputs (plug-in) Output
Number of displays DP
™
1 DP
™
2 HDMI
®
DP
™
1 DP
™
2 HDMI
®
Triple video output* DP
™
1 DP
™
2 HDMI
®
3840x2160@60 Hz 3840x2160@60 Hz 3840x2160@60 Hz
Dual video output
DP
™
1 DP
™
2
3840x2160@60 Hz 3840x2160@60 Hz
DP
™
2 HDMI
®
3840x2160@60 Hz 3840x2160@60 Hz
DP
™
1 HDMI
®
3840x2160@60 Hz 3840x2160@60 Hz
Single video output
DP
™
1 DP
™
2
5120x2880@60 Hz
DP
™
1
5120x2880@60 Hz
DP
™
2
5120x2880@60 Hz
HDMI
®
3840x2160@60 Hz
*Note:
The integrated notebook display must be deactivated in
the video settings of your operating system in order to
support video output to three external monitors!
ICY BOX IB-DK2405-C
