KEL-ER 16
Cable Entry Frames
KEL-ER 16|8 48168 8|- 10
KEL-ER 16|8
with V2A screws
48168.200 8|- 10
KEL-ER 16|5 48165 4|1 10
KEL-ER 16|5
with V2A screws
48165.200 4|1 10
KEL-ER 16|2 48162 -|2 10
KEL-ER 16|2
with V2A screws
48162.200 -|2 10
Type Order No. Grommets PU Description
small | large
Advantages & Bene ts
▀ Warranty on pre-terminated cables remains
▀ Retro ts, repairs and maintenance can be done much
more easily and quickly
▀ High cable density, wide variety of grommets
▀ Strain relief according to EN 62444
▀ High stability, vibration resistant
Product Description
V2A
anti-corrosive
Also available with threaded
bushings.
Also available with stainless
steel screws (V2A).
Accessories
Speci cations
Material
Flame class
IP rating
NEMA type rating
Temperature
Properties
Cut-out dimensions
Frame depth
Polyamide (PA)
UL94-V0
IP65, with gasket and correct
selection of single grommets
(certi ed acc. to EN 60529)
NEMA type 4X (acc. to UL 50E)
- 40°C to + 140°C (static)
- 40°F to + 284°F (static)
Halogen-free, silicone-free
36/46 × 86 mm / Page 200 - 201
17 mm
KT Cable grommets
KEL-EMC Grounding mounts
ST Plugs
44 - 46
126 - 128
49

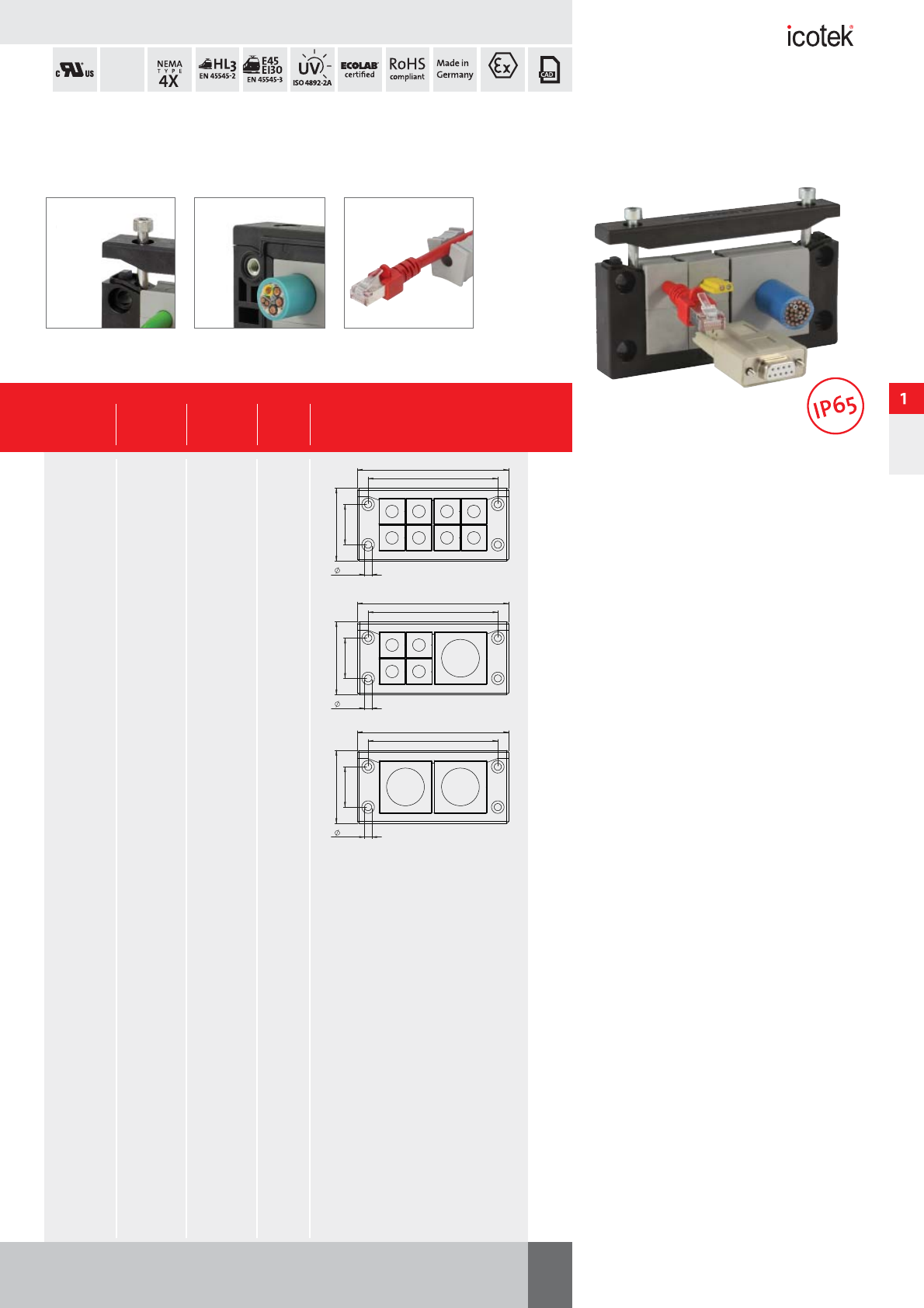

Split cable entry system for routing and sealing cables
with connectors, providing an IP65 / up to NEMA type
4X rating and strain relief for cable diameters from
1 to 16 mm (KT 1 - 15) and 16 to 35 mm (KT 16 - 34).
The new cable entry system is easy to install. Cable
grommets are placed into compartments in the frame
and are securely  xed to the frame during assembly.
The KEL-ER 16 frame matches exactly the cut-out
dimensions for 16-pin standard industrial connectors.
A  at rubber gasket is included in the shipment.
Slit KT grommets
up to
IP
Page 174
up to
Page 197
