User Manual

4

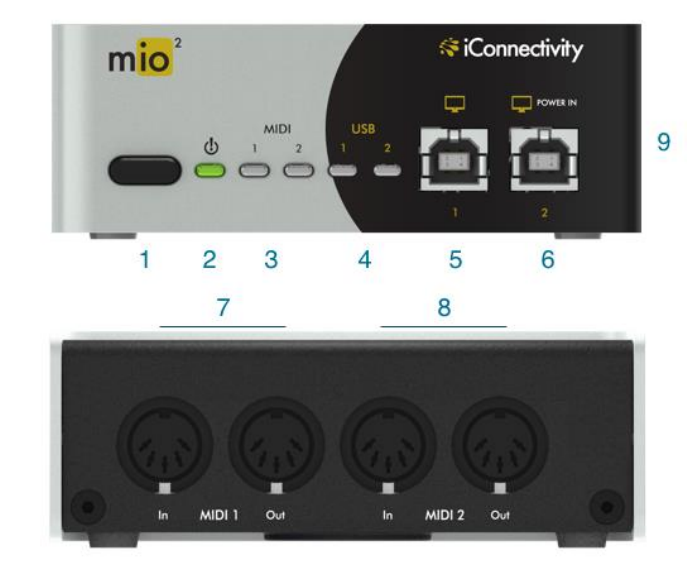

mio2 Hardware Layout
1. Power button
- Sleep Mode: Hold for two seconds
until green LED goes out, then
release.
- Wake: Touch button briefly.
- Hard-reset: Hold button for seven
seconds until all LEDs light up;
release button.
- Bootloader mode to receive
firmware updates: Hold button for
four seconds until power LED turns
red; release button. MIDI 1 and
MIDI2 lights alternate on and off.
Press and hold to abort bootloader
mode.
2. Power LED
Green indicates mio is powered up
normally.
3. MIDI 1 & 2 LEDs
Indicate that MIDI data is being
sent/received at corresponding
MIDI DIN jacks.
4. USB Device Jacks 1 & 2 LEDs
Indicate MIDI is being sent to/from
a computer on the USB-B computer
device jacks.
5. USB Device Jack 1
USB computer device jack for a Mac
or PC, using a standard USB-B cable.
Does not power the device or
support firmware loading.
6. USB Device Jack 2 (Power)
USB computer device jack for a Mac
or PC. Powers the device over the
USB bus. Supports firmware
loading. Accepts a USB-B cable.
7. MIDI 1 in/out jack pair
Connect standard 5-pin MIDI DIN
equipment.
8. MIDI 2 in/out jack pair
Connect standard 5-pin MIDI DIN
equipment.
9. Security lock port (right side)
