User Manual

12
MIDI Controller Filters Page
This setting allows specific MIDI Controller messages to be removed (filtered) on either the
input or output path. The list of all 128 controller IDs in the MIDI spec is available, and up to
eight different controller filters can be specified.

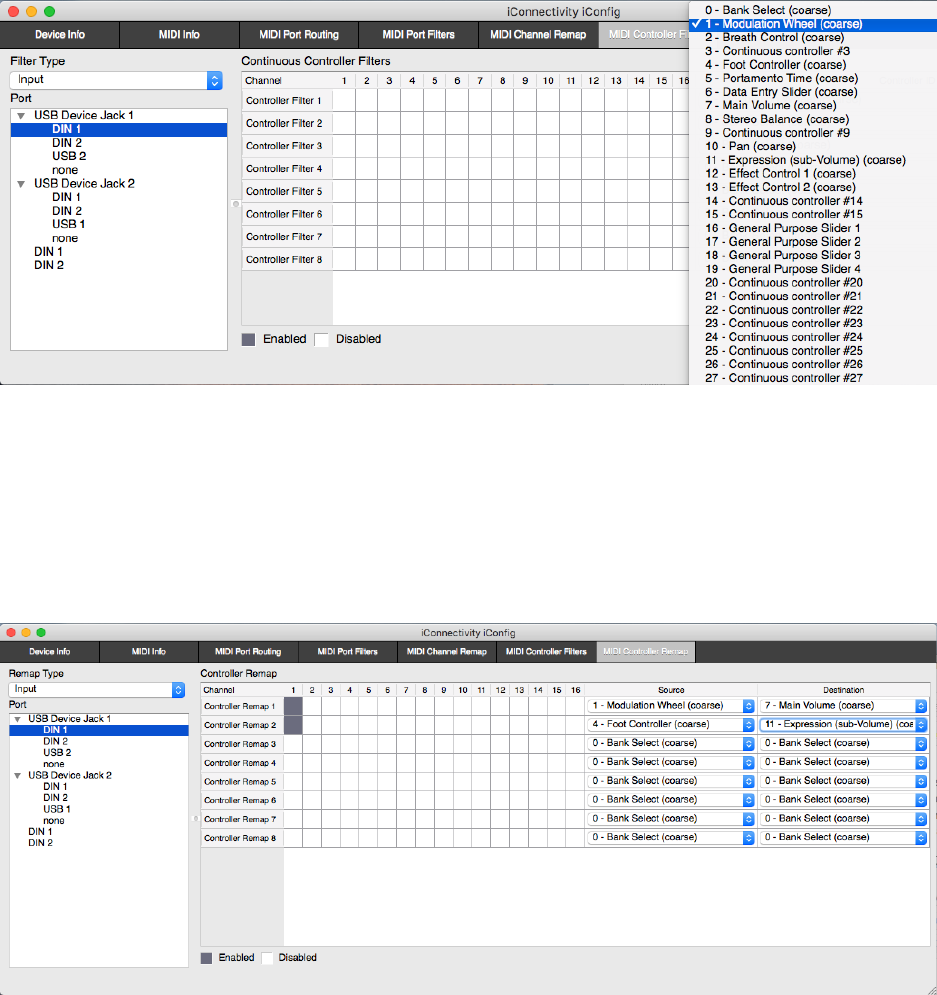

The example below shows Modulation Wheel messages (ID 01) being removed at the input
from USB 1 / port β€œDIN 1,” on MIDI channel 1.
MIDI Controller Remap Page
This setting allows MIDI Controller messages to be changed to a different controller message.
In this example two controller messages have been remapped at the input on USB 1 / port β€œDIN
1,” MIDI Channel 1. Modulation wheel messages are being used to control volume and foot
pedal messages are being used to control expression.
