10
MIDI Port Routing Page
Every 16-channel MIDI port input from each physical connection can be routed to one or more
destinations. For example, a DAW track routed to 5-pin DIN 1 could be routed to an additional
DIN jack to layer a synth sound.

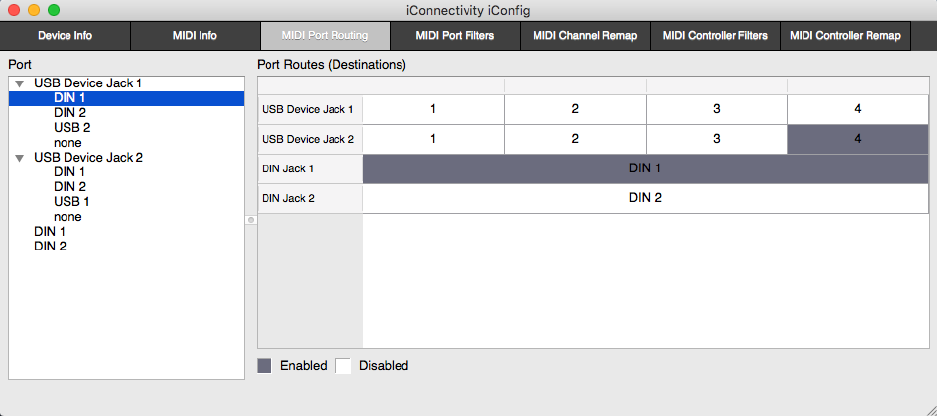

In the Port Routing example below, MIDI sent to port “DIN 1” from the first computer (on USB
Jack 1) is being routed both to the DIN 1 jack and to the other computer's Port 4 (on USB Jack
2).
