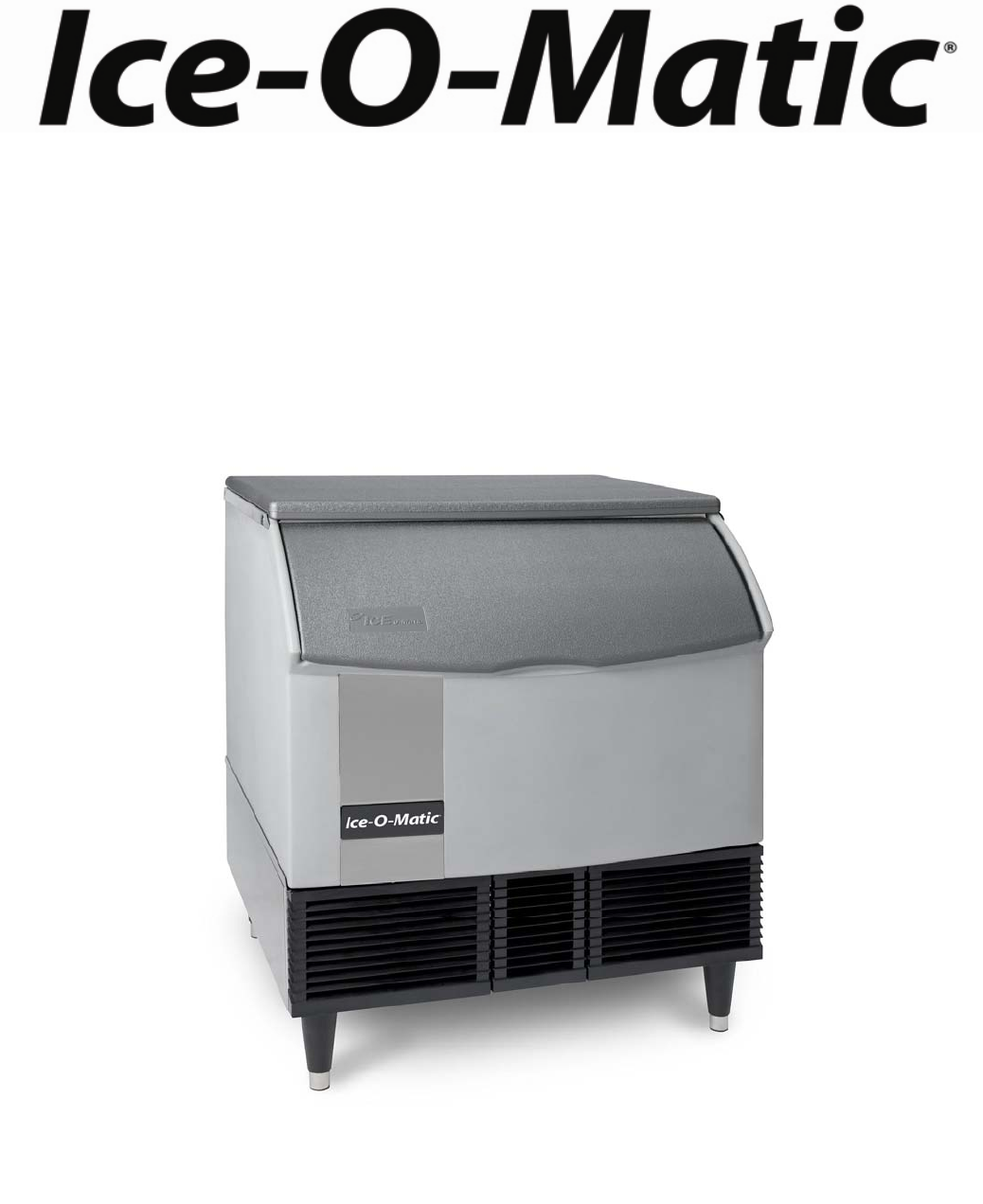

SERVICE PARTS MANUAL The ICE Series Undercounter Cubers MODEL-ICEU300, ICEU305 Ice-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081332-01 Date 6/13
*
ICEU300 Service Parts Table of Contents This parts list contains the service parts available for the ICEU300 Undercounter icemakers. Check the model number on the data plate and refer to the correct listing for the specific component. Check carefully that the correct part is identified and ordered.
ICEU300 Service Parts Bin and Exterior Components Page 2
ICEU300 Service Parts Item ICEU300 1 3021895-01 2 3051895-02 3 3012149-01 4 9151015-04 5 9101242-01 6 9051530-01 7 9051531-01 8 2101400-01S 9 9031112-01 10 9091122-02 11 9021010-04 12 2101401-01S 9051525-01 9031122-03 3013235-01 13 2101402-01S 9051526-01 3021894-01 3021894-02 9031008-46 9031113-04 14 9031023-10 15 9031046-03 16 9031162-01 17 3013161-01 18 9021095-01 19 9051127-02 20 2021646-01 21 3021883-01 22 3021883-01 ICEU305 3021895-01 3051895-02 3012149-01 N/A N/A 9051530-01 9051531-01 2101400-01S 903
ICEU300 Service Parts Refrigeration Page 4
ICEU300 Service Parts Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 ICEU300 9181121-01 9151134-04 9151004-02 9151004-05 9091086-02 9091086-03 9151123-06 9151123-03 9041105-04 9031004-02 9181002-07 9031118-02 9181002-08 9031012-02 2021644-01 9141121-01 2101399-01 9031046-24 9031004-19 3013270-01 3013243-01 9161112-01 9131446-01 3013217-01 9141128-01 9021010-04 9091024-01 9091140-01 2021646-01 9041059-01 9091063-02 9091135-01 9031118-05 9041087-03 3021883-0
ICEU300 Service Parts Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ICEU300 2061962-05 3013170-01 9161030-01 9131190-03 9051001-13 9051001-03 9031019-08 9051057-01 9021102-01 9031003-03 9031119-01 9051519-01 9101160-01 3051145-02 9031008-44 9031120-01 ICEU305 2061962-07 3013170-01 9161031-01 9131190-03 9051001-13 9051001-03 9031019-08 9051057-01 9021102-01 9031003-03 9031119-01 9051519-01 9101160-01 3051145-02 9031008-44 9031120-01 Harvest Assist Assembly Description Harvest Assist Assembly Bracket, Probe M
ICEU300 Service Parts Item 1 2 3 4 5 6 7 8 9 10 11 12 13 ICEU300 9041097-01 9101195-01 9101139-03 9041095-01 9041094-01 N/A 9181003-39 9181004-27 9101148-01 9041087-03 9101084-01 9101083-01 9041083-02 ICEU305 9041097-01 9101195-01 9101139-03 9041095-01 9041094-01 9181009-08 9181003-40 9181010-26 9101148-01 9041087-03 9041084-02 9101083-01 9041083-02 Control Box Description Thermostat-Bin Control Ice/Off/Wash Switch Switch-Purge High Pressure Control Low Pressure Control (Timer Initiate) Run Capacitor S
ICEU300 Service Parts Item ICEU300 1 2051231-02s 1 2051231-01s 2 2041338-01 3 9031122-01 4 9031004-19 5 9051135-05 6 9051136-07 7 9051136-08 8 9051135-04 ICEU305 2051231-02s 2051231-01s 2041338-01 9031122-01 9031004-19 9051135-05 9051136-07 9051136-08 9051135-04 Evaporator Description Evaporator Assembly-Half Cube (Shown) Evaporator Assembly-Full Cube Water Distribution Tube Thumbscrew Rubber Washer Spillway Left Side Evaporator Mounting Panel Right Side Evaporator Mounting Panel Water Return Page 8
ICEU300 Service Parts Item 1 2 3 4 5 6 7 8 9 10 11 12 13 ICEU300 9161076-01 3013219-01 9031141-01 9131111-01 6021032-01 9091080-01 9091081-01 9131026-02 3051223-02 9021010-04 9091024-01 9021010-03 9051280-05 ICEU305 9161076-02 3013219-01 9031141-01 9131111-01 6021032-01 9091080-01 9091081-01 9131026-02 3051223-02 9021010-04 9091024-01 9021010-03 9051280-05 Water Pump Description Water Pump Pump Bracket Plastic Nut Float Tube-Polyethylene - 11 Inches Required Barrel Fitting Sleeve Cap Plug Hose PVC 5/8
