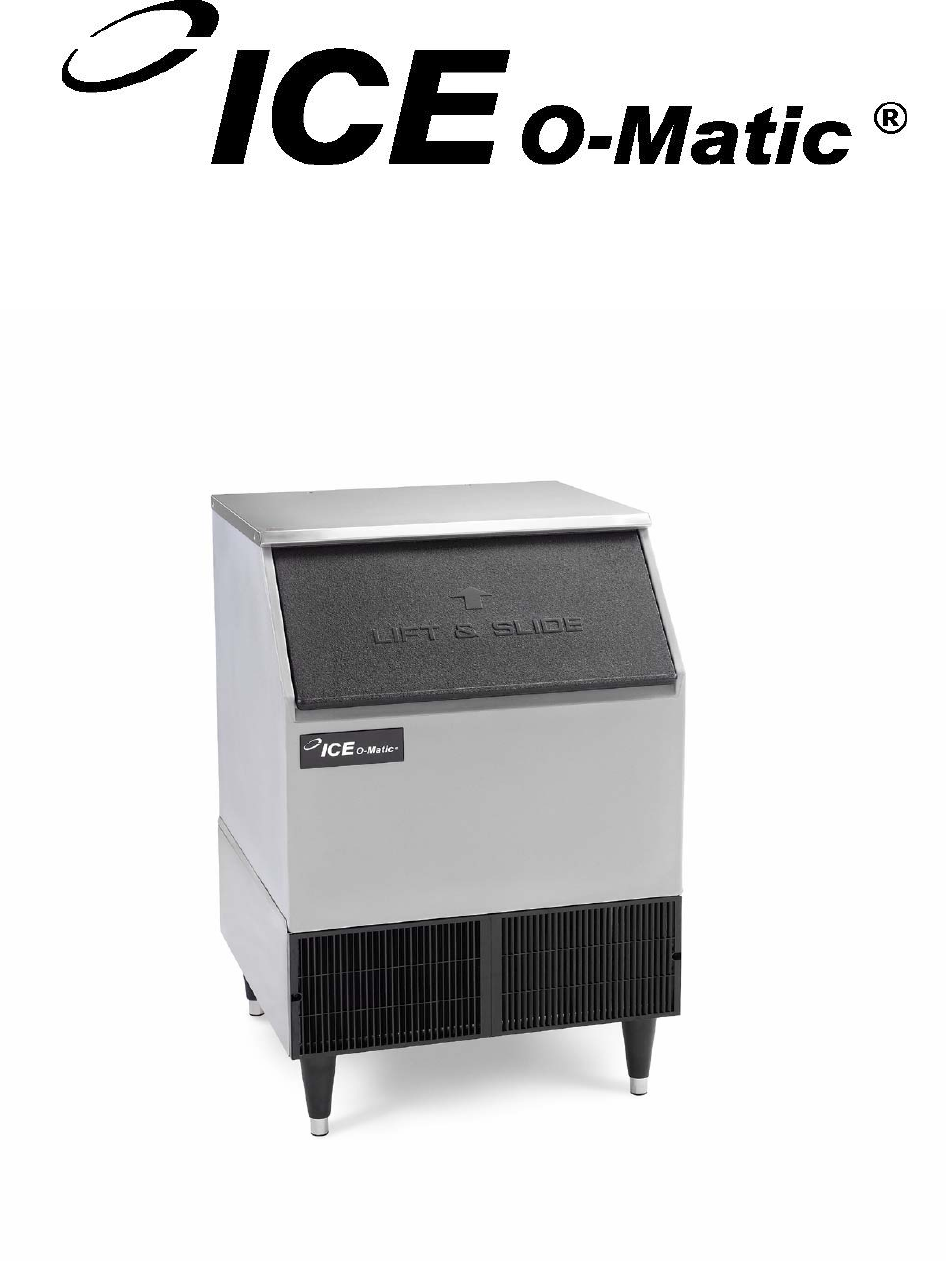

SERVICE PARTS MANUAL ICE UNDERCOUNTER SERIES CUBERS MODEL-ICEU150, ICEU200, ICEU205, ICEU206 ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081300-01 Rev 4/06
*
ICE Undercounter Service Parts This parts list contains the service parts available for the ICE Undercounter icemakers. Check the model number on the data plate and refer to the correct listing for the specific component. Check carefully that the correct part is identified and ordered.
ICE Undercounter Service Parts Bin and Exterior Components Page 2
ICE Undercounter Service Parts Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Description Front Grill Panel Grill Panel Screw #8 x 11/2 Trim Strip RH Trim Strip LH Side Panel S/S Bin Assembly (Includes Item # 7) Elbow, 3/4MPT x ½ Plastic Hose Clamp Leg Set (4 ea.
ICE Undercounter Service Parts Evaporator and Water System PLEASE NOTE UNDERCOUNTER UNITS DO NOT ULITIZE A SPLASH CURATIN Page 4
ICE Undercounter Service Parts Item Description 1 Evaporator Full Cube Evaporator Full Cube (Beg. Ser. G239-03907-Z) Evaporator Full Cube (Beg. Ser. H2) 1 Evaporator Half Cube Evaporator Half Cube (Beg. Ser. G239-03907-Z) Evaporator Half Cube (Beg Ser.
ICE Undercounter Service Parts Refrigeration System-Air Cooled Page 6
ICE Undercounter Service Parts Item 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 18 18 18 19 20 21 22 22 23 24 25 Refrigeration System Air Cooled Description ICEU150 ICEU200 ICEU205 ICEU206 Compressor Kit 9181115-11 9181113-11 9181084-13 9181084-13 Grommet 9181002-10 9181002-07 9181061-80 9181061-80 Sleeve 9181002-11 9181002-08 9181061-80 9181061-80 Start Capacitor 9181003-43 9181003-35 9181003-27 9181003-27 Relay 9181004-24 9181004-22 9181004-15 9181004-15 Overload 9181005-42 9181005-29 N/A N/A Fan Blade
ICE Undercounter Service Parts Refrigeration System-Water Cooled Page 8
ICE Undercounter Service Parts Item 1 2 3 4 5 6 7 7 8 9 10 11 12 13 14 15 16 17 18 18 18 18 19 20 21 22 22 23 Refrigeration System-Water Cooled Description ICEU150 ICEU200 ICEU205 ICEU206 Compressor Kit 9181115-11 9181113-11 9181084-13 9181084-13 Grommet 9181002-10 9181002-07 9181061-80 9181061-80 Sleeve 9181002-11 9181002-08 9181061-80 9181061-80 Start Capacitor 9181003-36 9181003-35 9181003-27 9181003-27 Relay 9181004-24 9181004-22 9181004-15 9181004-15 Overload 9181005-33 9181005-29 N/A N/A Water Valve
ICE Undercounter Service Parts Control Box Assembly Page 10
ICE Undercounter Service Parts Item 1 2 3 4 5 6 7 7 8 9 9 10 11 12 13 14 15 16 16A 17 18 19 20 Description Water Pump Connector Terminal Block Switch-Purge Ice/Off/Wash Switch Thermostat-Bin Control Screw 8-32 x 3/8 Low Pressure Control (Timer Initiate) Low Pressure Control (Includes Drier) Screw 6-32 x 3/8 High Pressure Control High Pressure Control (Includes Drier) Screw 6-32 x 3/8 Timing Module Screw #8 x 1 S.M. Relay Socket-Relay Screw #6 x 1/2 S.M.
ICE Undercounter Service Parts Item Description 1 Water Pump 115 V 1 Water Pump 230 V Thumbscrew for Water Pump (2 Req) 2 Pump Bracket 3 Plastic Nut 4 Float 5 Cap Plug 6 Plastic Barbed Tee 5/8 7 Plastic Clamp 8 Hose PVC 9/16 (Formed) 9 Hose PVC 5/8 - 1.
ICE Undercounter Service Parts Old Style Harvest Assist Assembly OLD STYLE HARVEST ASSIST ASSEMBLY W/ PROBE SHAFT, SWIVEL AND LOCKING NUT Item 1 2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Description Probe Motor Bracket Gear Motor 115 V Gear Motor 230 V Clutch Assembly Connecting Rod Probe Shaft Limit Switch Swivel for 9131189-01 Shaft Switch Insulator Shoulder Screw Screw #6-32 x 1/2 Fillister Head Pan Head Machine Screw #4-40 x 3/4 S/S Snap Bushing Speed Nut Plate Hex Nut #10-32 Washer # 10 Harvest Asssist As
ICE Series Service Parts New Style Harvest Assist Assembly NEW STYLE HARVEST ASSIST ASSEMBLY W/ SINGLE LENGTH PROBE SHAFT Page 14
ICE Series Service Parts Item Description 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Bracket, Probe Motor Gear Motor Clutch Assembly Snap Bushing Snap Bushing #6-32 x 1/2 Screw Connecting Rod Probe, Single Length Flat Washer Shoulder Screw Spacer, Cam Switch Cam Switch Insulator Pan Head Screw Speed Nut Plate Complete Assembly New Style Harvest Assist Assembly ICEU150 ICEU200 ICEU205 ICEU206 3013170-01 9161030-01 9131190-01 9051001-13 9051001-03 9031019-08 9051057-01 9021102-01 9031003-03 9031119-01 9051519-
