Table Of Contents
Table of Contents
1. Technical Specifications
2. Product type identification
3. The product’s purpose
4. ICARUS blue receiver
4.1 Installation requirements
4.2 Cable connections
4.3 Status LED
4.4 Activate/Deactivate pairing mode
5. ICARUS blue app
5.1 Overview / Home screen
5.2 Adding a new receiver
5.3 Switching between several receivers
5.4 Mainfunctions
5.5 Advanced output options
5.5.1 Timer functions
5.5.2 Output control
5.5.3 Output selection and button-visibility
5.6 App flowchart
5.7 App-settings
6. Using the device
7. Maintenance and cleaning
8. Solving of DTC’s
9. Disposal
10. Warranty
11. Declaration of conformity
A PRODUCT OF THE
ICP GR
OUP
| WW
W
.ICPGROUP
.EU
P
AGE 7
USER MANUAL

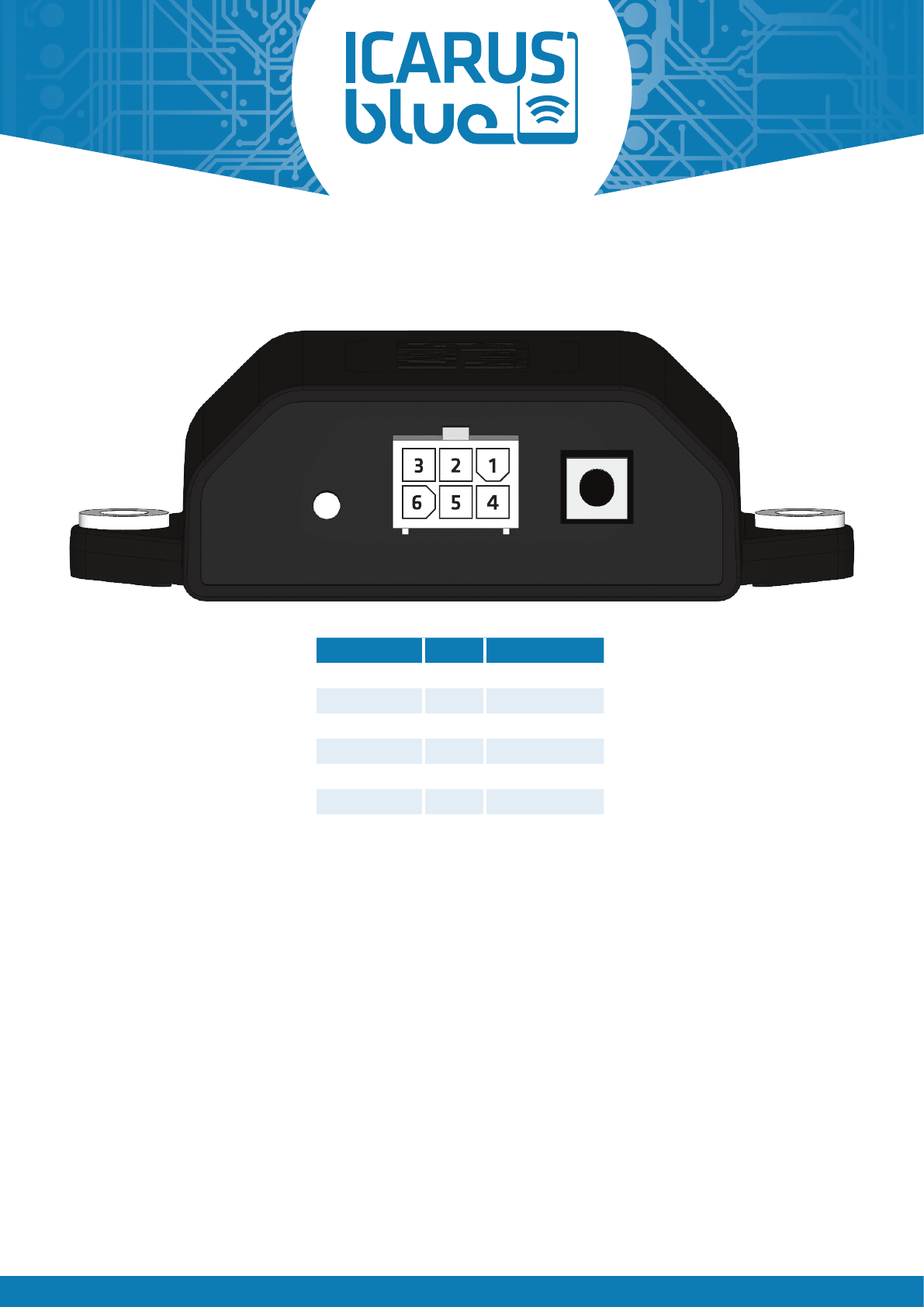

4.2 CABLE C
ONNECTIONS
Function
Pin
Wire-Colour
0V
dc
4
Black
9-36V
1
Red
Output 1
2
Green
Output 2
5
Y
ellow
Output 3
3
Purple
Output 4
6
Grey
1
...
...
6
7
8
9
10
...
...
21
