Chapter 2. Disassembling the 4810/4910 SurePOS 300
This section describes how to disassemble the 4810/4910 SurePOS 300.
1. Unplug the power cord.
2. Remove the cover from the unit.
3. Remove the hard drive (A in Figure 2-2 on page 2-2) or compact flash (B):
Note:
The unit can accommodate either the hard disk drive or the compact
flash.
a. To remove the hard drive, disconnect the power and interface cables from
the hard drive.
A
B
H
D
C
E
G
F
L
L

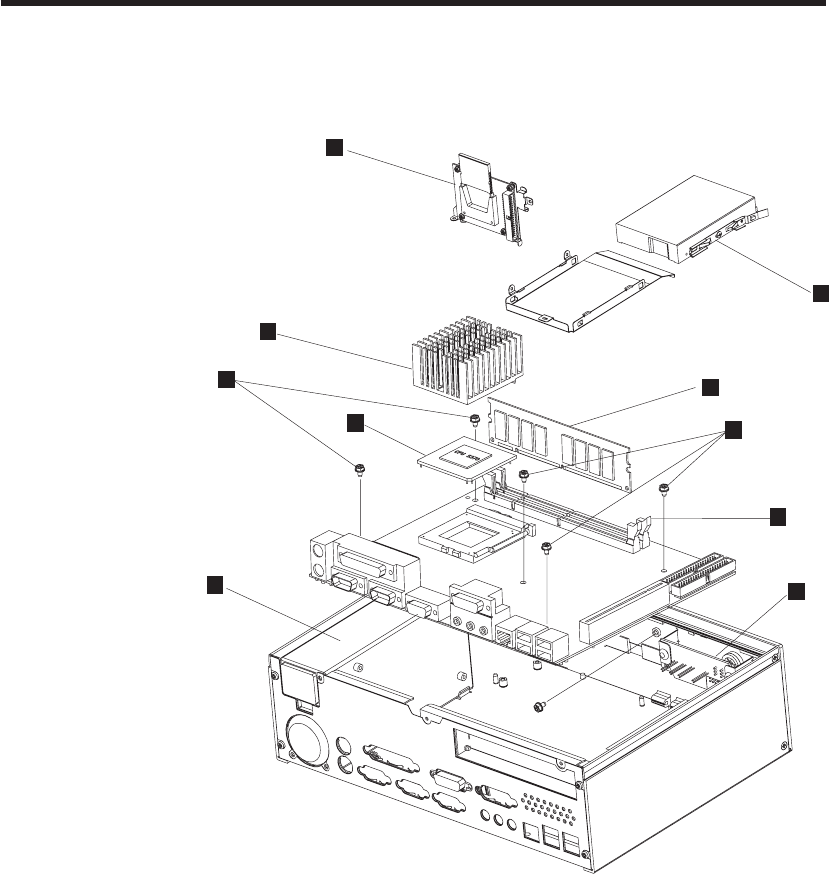

Figure 2-1. View of components
