What
to
do
next:
v
To
work
with
another
option,
go
to
the
appropriate
section.
v
To
complete
the
installation,
go
to
“Closing
the
cover
and
connecting
the
cables”
on
page
25.
Removing
and
replacing
a
diskette
drive
1.
Open
the
cover.
See
“Opening
the
cover”
on
page
10.

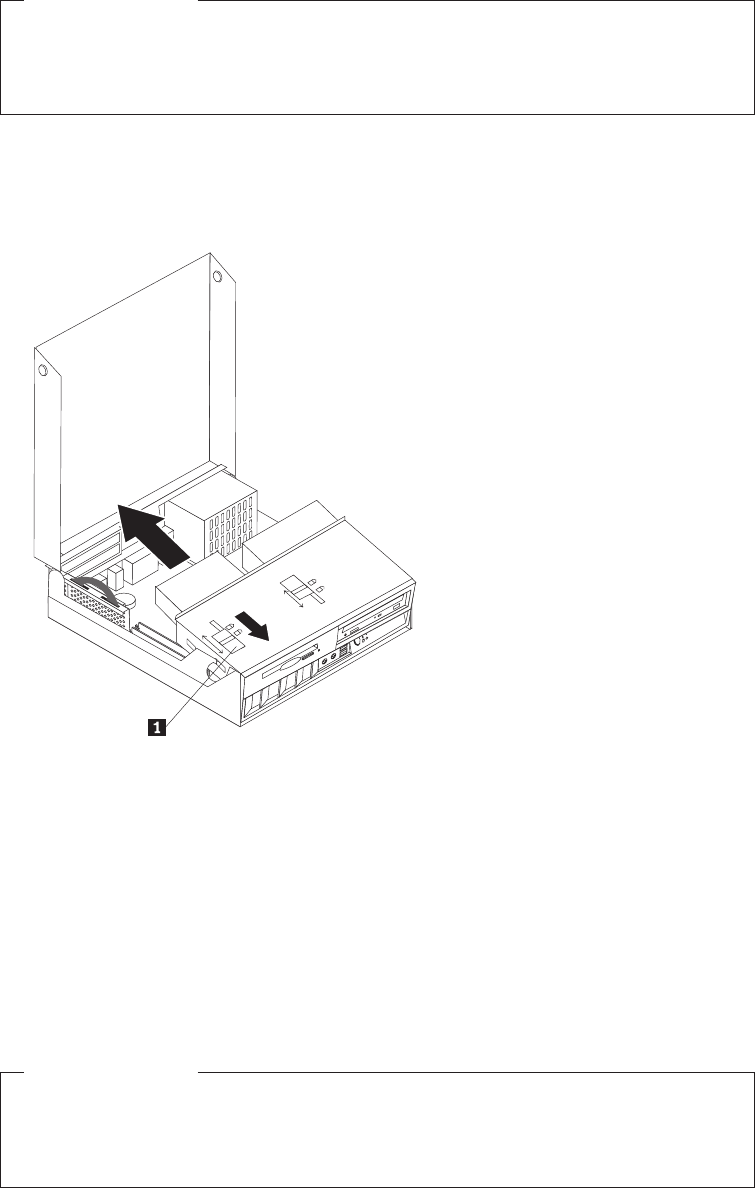

2.
Slide
the
lock1to
the
unlocked
position.
3.
Slide
the
drive
towards
the
rear
of
the
computer
far
enough
to
gain
access
to
the
flat
cable
connector
on
the
drive
and
disconnect
the
flat
cable
from
the
drive.
4.
Rotate
the
drive
bay
assembly
upward
and
remove
the
diskette
drive.
To
install
a
new
diskette
drive:
1.
Slide
the
new
drive
partially
into
the
bay
from
the
rear.
2.
Connect
the
flat
cable
to
the
new
drive.
3.
Slide
the
new
drive
completely
into
the
bay
and
slide
the
lock1to
the
locked
position.
What
to
do
next:
v
To
work
with
another
option,
go
to
the
appropriate
section.
v
To
complete
the
installation,
go
to
“Closing
the
cover
and
connecting
the
cables”
on
page
25.
Connecting
a
serial
ATA
hard
disk
drive
1.
Locate
the
signal
cable
that
came
with
your
computer
or
with
the
new
drive.
