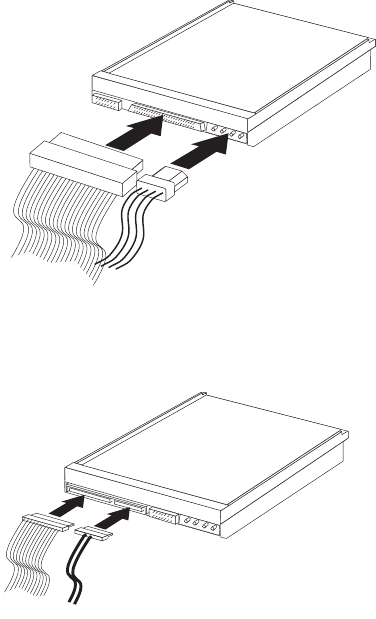

Parallel
ATA
IDE
drive
Serial
ATA
IDE
drive
Listed
below
are
the
various
types
of
drives
and
the
connector
used
to
connect
them
to
the
system
board.
Each
drive
also
requires
the
connection
of
a
power
cable
from
the
power
supply.
Serial
ATA
IDE
hard
disk
drive
Connect
to
an
SATA
1
IDE
or
SATA
2
IDE
connector
Parallel
ATA
IDE
hard
disk
drive
Connect
to
the
PATA
Primary
IDE
connector
CD-ROM,
CD-RW,
or
DVD
optical
drives
Connect
to
the
PATA
Primary
IDE
connector
Diskette
drive
Connect
to
the
diskette
drive
connector
Chapter
2.
Installing
options
17
