Locating
connectors
on
the
rear
of
your
computer

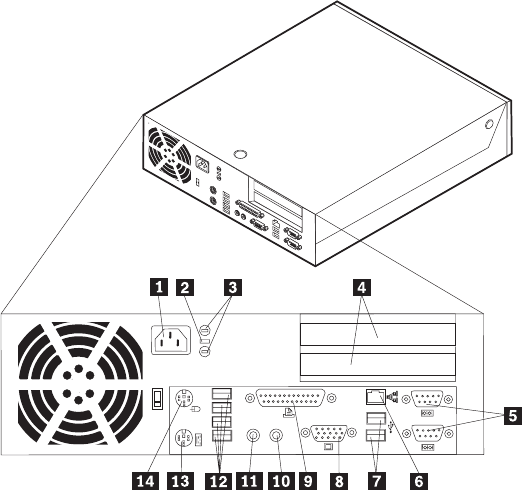

The
following
illustration
shows
locations
of
connectors
on
the
rear
of
your
computer.
1
Power
cord
connector
8
VGA
monitor
connector
2
Cable
lock
latch
9
Parallel
connector
3
Rope
clip
(U-bolt)
holes
10
Audio
line-in
connector
4
PCI
adapter
slots
11
Audio
line-out
connector
5
Serial
connectors
(2)
12
USB
connectors
(4)
6
Ethernet
connector
13
PS/2
keyboard
connector
7
USB
connectors
(2)
14
PS/2
mouse
connector
Note:
Some
connectors
on
the
rear
of
your
computer
are
color-coded
to
help
determine
where
to
connect
the
cables.
Obtaining
device
drivers
You
can
obtain
device
drivers
for
operating
systems
that
are
not
preinstalled
at
http://www.ibm.com/pc/support/
on
the
World
Wide
Web.
Installation
instructions
are
provided
in
README
files
with
the
device-driver
files.
Chapter
2.
Installing
options
9
