ASM
interconnect
network
configuration
examples:
The
illustrations
in
this
section
show
sample
ASM
interconnect
network
configurations.
In
the
following
example,
an
Ethernet
cable
connects
the
remote
system
management
administrator’s
system
to
the
Remote
Supervisor
Adapter
II-EXA
that
is
installed
in
an
xSeries
445.
In
this
case,
the
xSeries
445
uses
the
LAN
connection
to
forward
system-management
data
generated
by
the
other
servers
in
the
ASM
interconnect
network
to
the
remote
system-management
administrator.
Remote
Supervisor
Adapter II - EXA
Remote
Supervisor
Adapter
Ethernet
xSeries 445
xSeries 445
xSeries 445
ASM
Interconnect
module
Remote system
management
administrator's system
RS-485
terminator plug
RS-485
terminator plug

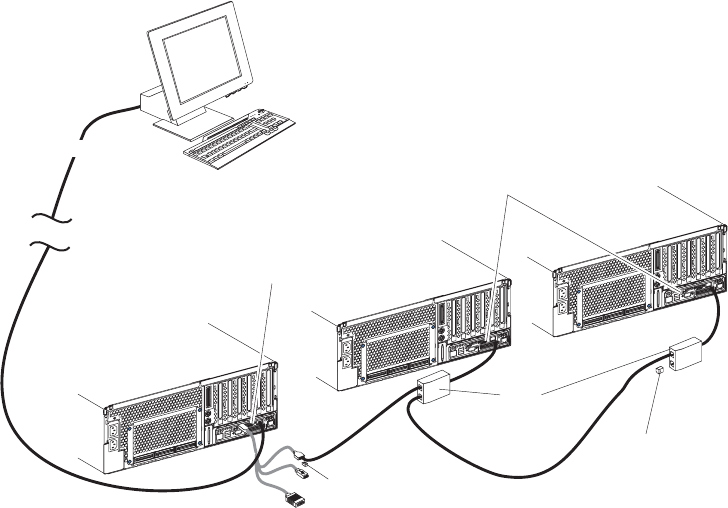

Figure
19.
ASM
interconnect
network
Ethernet
configuration
50
xSeries
445
Type
8870:
User’s
Guide
