User's Manual

Remote Supervisor Adapter II-EXA connectors and LEDs: This group of
connectors and LEDs on the back of the server is used for system-management
information and control.
v External power connector: You can connect an optional ac power adapter to
this connector.
v Heartbeat LED: This amber LED flashes continuously to indicate that there is
activity on the Remote Supervisor Adapter II-EXA.
v RSA II-EXA breakout port: Connect the RSA II-EXA breakout cable to this port
to provide two ASM interconnect ports, one USB port, and one Management port.
v Ethernet activity LED: This green LED is lit when there is activity on the
Ethernet LAN.
v Ethernet link LED: This green LED is lit when the Ethernet link is active.
v 10/100 Ethernet port: Connect Ethernet signal cables to this port.
v Video port: Connect a monitor or console switch to this port.
Important: If your server has a Remote Supervisor Adapter II-EXA installed, the
integrated video controller is disabled. You must connect a monitor or console
switch to the video port on the Remote Supervisor Adapter II-EXA.
v Power LED: This green LED comes on and stays lit when you plug in your
server.
Remote
Supervisor Adapter connectors and LEDs: This group of connectors
and LEDs on the back of the server is used for system-management information
and control.
External power
connector
Heartbeat LED
(amber)
Power LED
(green)
RSA II - EXA
breakout port
Ethernet link LED
(green)
Ethernet activity LED
(green)
10/100
Ethernet port
Video port

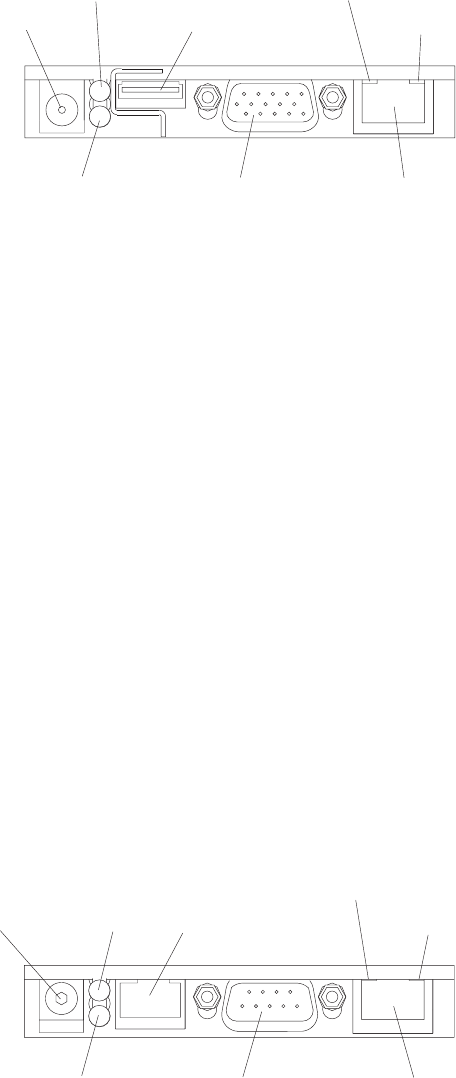

Figure 4. Remote Supervisor Adapter II-EXA connectors and LEDs
External power
connector
Error LED
(amber)
Power LED
(green)
ASM interconnect
port
Ethernet link LED
(green)
Ethernet activity LED
(green)
10/100
Ethernet port
Management port
Figure 5. Remote Supervisor Adapter connectors and LEDs
12 xSeries 445 Type 8870: User’s Guide
